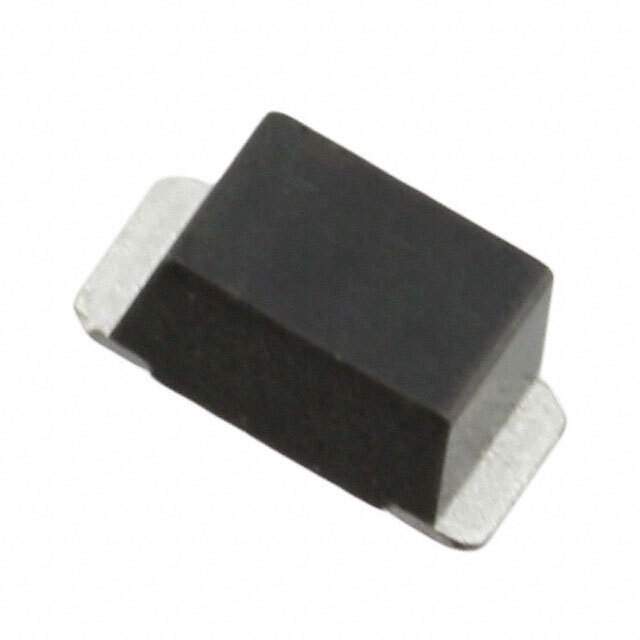

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 500mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 40V
Capacitance @ Vr, F 120pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package Mini SMA/SOD-123
Operating Temperature - Junction -50°C to 125°C
Win Source Part Number 012964-CDBM140-G
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 2,500
Family Name CDBM140
Introduction Date November 12, 2002
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian CDBM140-G CAD Model

Description

Description

The CDBM140-G is a high-efficiency balun transformer, ideal for applications that demand precise signal management between unbalanced and balanced lines. Its robust characteristics make it an essential component in advanced electronic communication equipment.

Features and Benefits

  • Precise signal management
  • Enhanced frequency response range
  • Durable construction for demanding environments
  • Minimal insertion loss and superior signal integrity

Applications and Projects

  • High-frequency transceivers
  • Advanced communication systems
  • Satellite communication equipment
  • Broadcast transmitters

Additional Details

Designed for high-demand electronic systems, the CDBM140-G ensures optimal performance in various communication and broadcasting projects.
