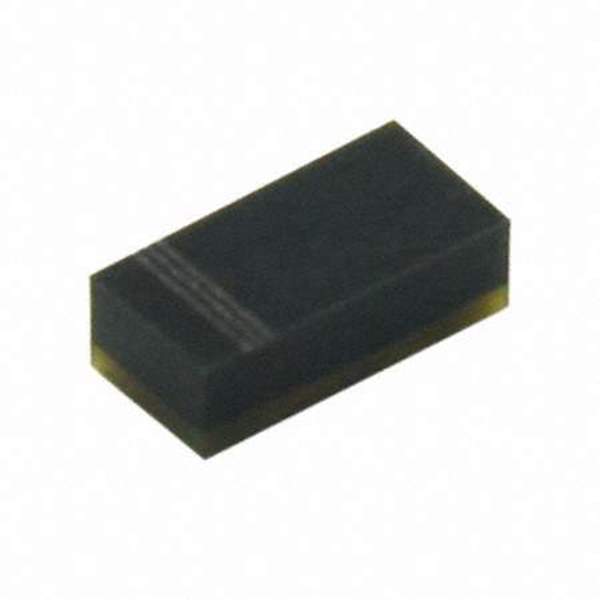

CDBF0520L Real Image
Same model may have multiple batches, images only for reference.

CDBF0520L

Part No CDBF0520L
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 500MA 1005
Datasheet
CDBF0520L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 385mV @ 500mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 22ns
Current - Reverse Leakage @ Vr 250μA @ 20V
Capacitance @ Vr, F 170pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package 1005/SOD-323F
Operating Temperature - Junction -40°C to 125°C
Win Source Part Number 1028631-CDBF0520L
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian CDBF0520L CAD Model

Description

The Comchip Technology CDBF0520L is a Schottky diode with a maximum DC reverse voltage of 20V and an average rectified current of 500mA.

  • Maximum DC Reverse Voltage: 20V
  • Average Rectified Current: 500mA
  • Voltage - Forward (Vf) (Max) @ If: 385mV @ 500mA
  • Reverse Recovery Time (trr): 22ns
  • Mounting: SMD (SMT)
  • Packaging: Reel - TR
  • Capacitance: 170pF @ 0V, 1MHz
  • Operating Temperature Range: -40°C to 125°C
  • Supply and Demand Status: Balanced
  • Package Quantity: 4k pieces
