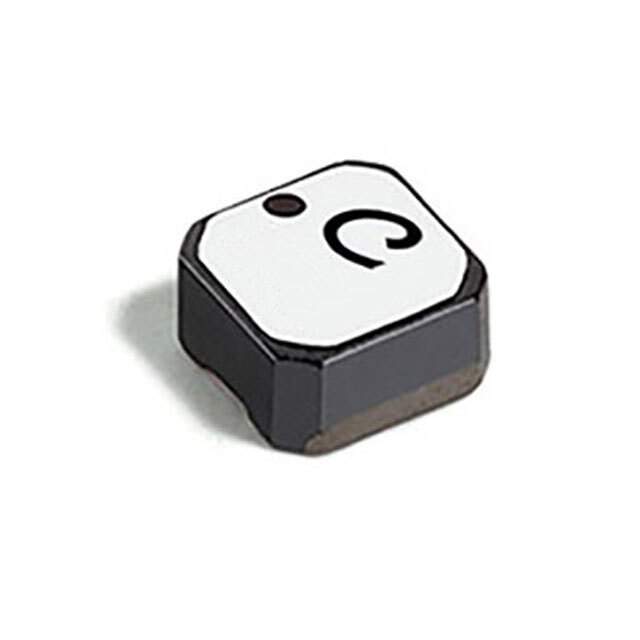

Same model may have multiple batches, images only for reference.

LPS3015-183MRC

Name: LPS3015-183MRC
Brand: Coilcraft
SKU: 977766
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LPS3015-183MRC
Manufacturer	Coilcraft
Catalog	Fixed Inductors
Description	FIXED IND 18UH 580MA 750MOHM SMD / 18 µH Shielded Inductor 580 mA 750mOhm Max Nonstandard
Datasheet	LPS3015-183MRC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	COILCRAFT
Series	LPS3015
Package	Strip
Material - Core	Ferrite
Inductance	18 µH
Tolerance	±20%
Current Rating (Amps)	580 mA
Current - Saturation (Isat)	590mA
Shielding	Shielded
DC Resistance (DCR)	750mOhm Max
Frequency - Self Resonant	33MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.116" L x 0.116" W (2.95mm x 2.95mm)
Height - Seated (Max)	0.059" (1.50mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	2457-LPS3015-183MRC,2457-LPS3015-183MR_,2457-LPS3015-183MR_-ND,2457-LPS3015-183MR_TR-ND
Standard Package	1
Win Source Part Number	977766-LPS3015-183MRC
Ultra Librarian 3D Model	Ultra Librarian LPS3015-183MRC CAD Model

Alternative Products

Description

The COILCRAFT LPS3015 is a fixed inductor that is shielded and has an inductance of 18 µH.

Type: Fixed Inductor, Shielded
Inductance: 18 µH
Tolerance: ±20%
DC Resistance (DCR): 750mOhm Max
AEC-Q200: AEC-Q200 rated
Self-Resonant Frequency: 33MHz
Mounting: SMD (SMT)
Package/Case: Nonstandard
