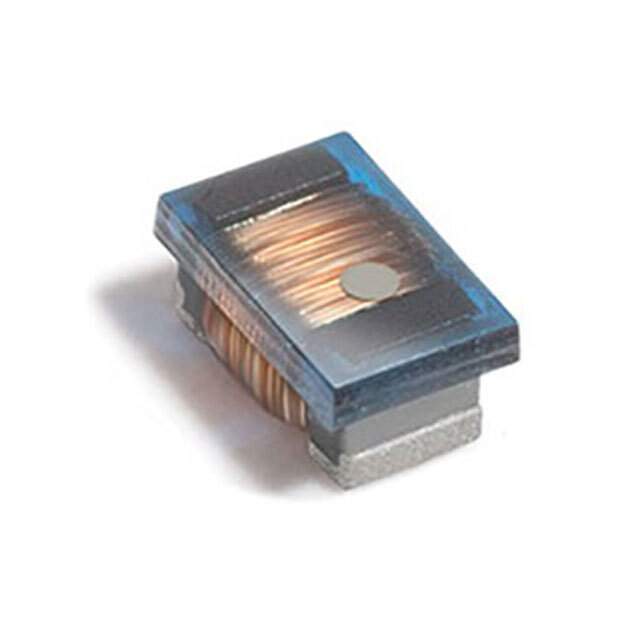

0603AF-681XJRW Real Image1 0603AF-681XJRW Real Image2
Same model may have multiple batches, images only for reference.
0603AF-681XJRW Real Image1 0603AF-681XJRW Real Image2
0603AF-681XJRW Real Image1 0603AF-681XJRW Real Image2
Same model may have multiple batches, images only for reference.

0603AF-681XJRW

Part No 0603AF-681XJRW
Manufacturer Coilcraft
Catalog Fixed Inductors
Description FIXED IND 680NH 490MA 460MOHM SM / 680 nH Unshielded Inductor 490 mA 460mOhm Max 0603 (1608 Metric)
Datasheet
0603AF-681XJRW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr COILCRAFT
Series 0603AF
Package Strip
Material - Core Ferrite
Inductance 680 nH
Tolerance ±5%
Current Rating (Amps) 490 mA
Shielding Unshielded
DC Resistance (DCR) 460mOhm Max
Q @ Freq 16 @ 7.9MHz
Frequency - Self Resonant 530MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 7.9 MHz
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 0.071" L x 0.044" W (1.80mm x 1.12mm)
Height - Seated (Max) 0.036" (0.91mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 2457-0603AF-681XJE_TR-ND,2457-0603AF-681XJRW,2457-0603AF-681XJE_,2457-0603AF-681XJEW,2457-0603AF-681XJE_-ND
Standard Package 1
Win Source Part Number 965108-0603AF-681XJRW
Ultra Librarian 3D Model Ultra Librarian 0603AF-681XJRW CAD Model

Description

This fixed inductor belongs to the Inductors, Coils, Chokes category and is manufactured by COILCRAFT.

  • Win Source Part Number: 965108-0603AF-681XJRW
  • Series, Type, Features, Package, Shielding, Inductance, Height, Standard Package, Mounting, Tolerance, Material-Core, Q @ Freq, Frequency - Self-Resonant, Package/Case, DC Resistance, Supplier Device Package, Temperature Range - Operating, and Dimension: (refer to product specification)
  • RoHS: compliant
