Same model may have multiple batches, images only for reference.

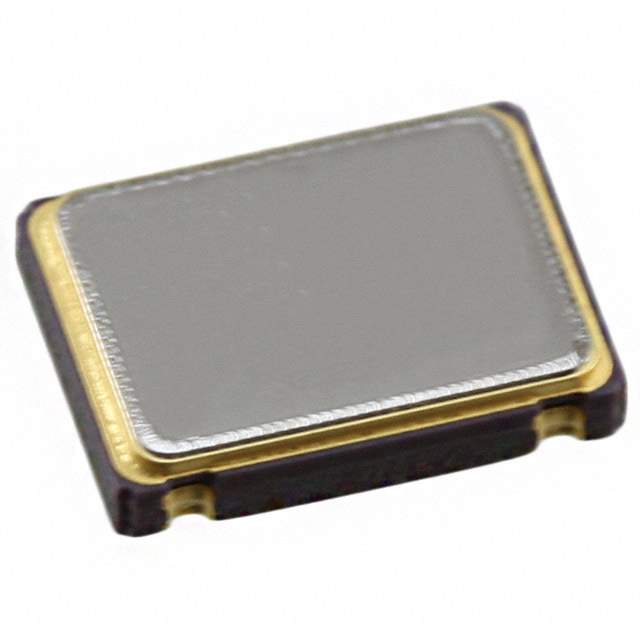

CSX-750FBC3686400T Real Image
Same model may have multiple batches, images only for reference.

CSX-750FBC3686400T

Part No CSX-750FBC3686400T
Manufacturer Citizen Finedevice Co Ltd
Catalog Oscillators
Description OSC XO 3.6864MHZ CMOS TTL SMD
Datasheet
CSX-750FBC3686400T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Citizen Finedevice Co Ltd
Packaging Reel - TR
Status Active
Type XO (Standard)
Frequency 3.6864MHz
Purpose Enable/Disable
Output CMOS
Supply Voltage - Operating 3.3V
Frequency Stability ±100ppm
Temperature Range - Operating -20°C to 70°C
Current - Supply (Max) 15mA
Mounting SMD (SMT)
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.063" (1.60mm)
Current - Supply (Disable) (Max) 5mA
Win Source Part Number 1022345-CSX-750FBC3686400T
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian CSX-750FBC3686400T CAD Model

Description

The Citizen Finedevice Co Ltd CSX-750FBC3686400T XO (standard) crystal is a high-quality electronic component that is designed to provide a stable frequency output.

  • Frequency: 3.6864MHz
  • Frequency Stability: ±100ppm
  • Operating Temperature Range: -20°C to 70°C
  • Current Supply: 15mA (max) and 5mA (max) when disabled
  • Package Type: Surface Mount Technology (SMT)
  • Mounting: Through a Hole
  • Packaging: Reel
