Same model may have multiple batches, images only for reference.

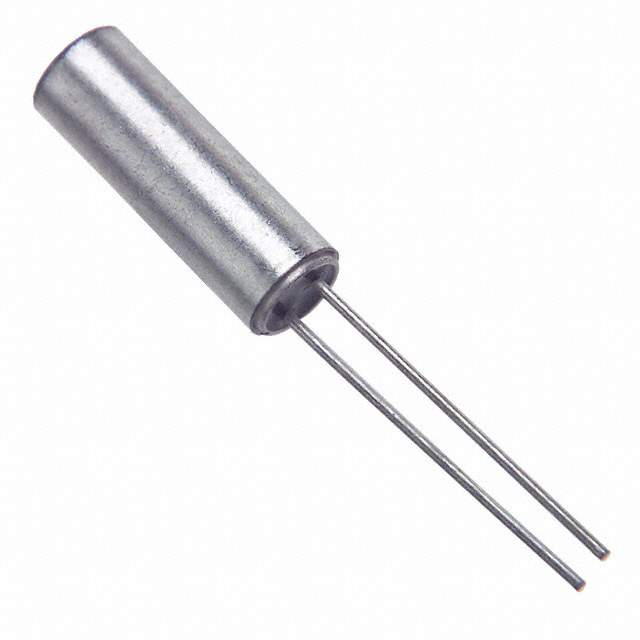

CSA309-6.144MABJ Real Image
Same model may have multiple batches, images only for reference.

CSA309-6.144MABJ

Part No CSA309-6.144MABJ
Manufacturer Citizen Finedevice Co Ltd
Catalog Crystals
Description CRYSTAL 6.1440MHZ 18PF TH / 6.144 MHz ±30ppm Crystal 18pF 100 Ohms Cylindrical Can, Radial
Datasheet
CSA309-6.144MABJ Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Citizen Finedevice Co Ltd
Series CSA309
Package Bulk
Product Status Obsolete
Type MHz Crystal
Frequency 6.144 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 60°C
Mounting Type Through Hole
Package / Case Cylindrical Can, Radial
Size / Dimension 0.118" Dia x 0.346" L (3.00mm x 8.80mm)
Height - Seated (Max) 0.354" (9.00mm)
Standard Package 1,000
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1348798-CSA309-6.144MABJ
Ultra Librarian 3D Model Ultra Librarian CSA309-6.144MABJ CAD Model

Description

The Citizen Finedevice Co Ltd CSA309-6.144MABJ is a MHz crystal that comes in a cylindrical can, radial package.

  • Frequency: 6.144 MHz
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Operating Mode: Fundamental
  • Load Capacitance: 18pF
  • ESR: 100 Ohms
  • Operating Temperature: -10°C to 60°C
  • Dimension: 0.118" Dia x 0.346" L (3.00mm x 8.80mm)
  • Status: Obsolete
  • RoHS: Non-Compliant
