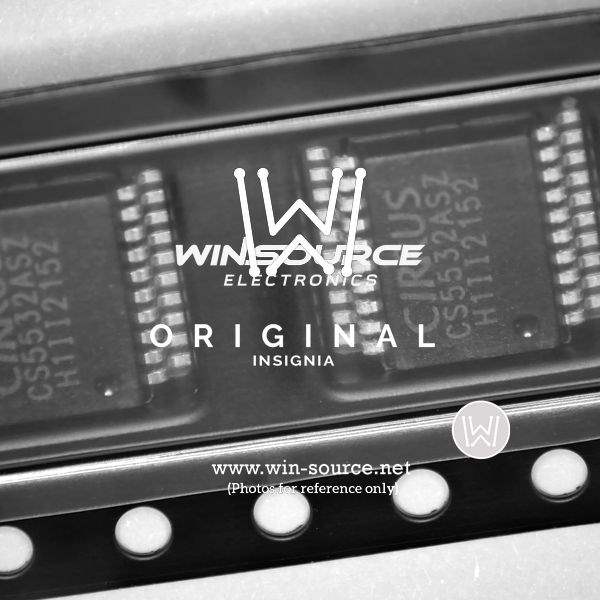

CS5532-ASZR Real Image CS5532-ASZR Real Image
Same model may have multiple batches, images only for reference.
CS5532-ASZR Real Image CS5532-ASZR Real Image
CS5532-ASZR Real Image CS5532-ASZR Real Image
Same model may have multiple batches, images only for reference.

CS5532-ASZR

Part No CS5532-ASZR
Manufacturer Cirrus Logic Inc.
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 24BIT SIGMA-DELTA 20SSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Data Acquisition - Analog to Digital Converters (ADC)
Mfr Cirrus Logic Inc.
Package Tape & Reel
Product Status Active
Number of Bits 24
Sampling Rate (Per Second) 3.84k
Number of Inputs 2
Input Type Differential
Data Interface SPI
Configuration MUX-PGA-ADC
Number of A/D Converters 1
Architecture Sigma-Delta
Reference Type External
Voltage - Supply, Analog ±3V, 0V ~ 5V
Voltage - Supply, Digital 3V ~ 5V
Features PGA, Selectable Address
Temperature Range - Operating -40°C ~ 85°C
Package / Case 20-SSOP (0.209", 5.30mm Width)
Supplier Device Package 20-SSOP
Mounting Type Surface Mount
Base Product Number CS5532
Standard Package 2,000 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 846213-CS5532-ASZR
Ultra Librarian 3D Model Ultra Librarian CS5532-ASZR CAD Model

Description

The CS5532-ASZR is an analog to digital converter (ADC) integrated circuit (IC) from Cirrus Logic Inc.

  • Type: ADC (Analog to Digital Converter)
  • Architecture: Sigma-Delta
  • Resolution: 24 bits
  • Sampling Rate: 3.84k SPS (Samples Per Second)
  • Number of Inputs: Differential
  • Voltage Supply: 3V to 5V
  • Voltage Reference Type: External
  • Data Interface: SPI
  • Package: 20-SSOP
  • Mounting Type: Surface Mount
  • Product Status: Active
