M83513/02-BC Cinch Connectivity Solutions – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

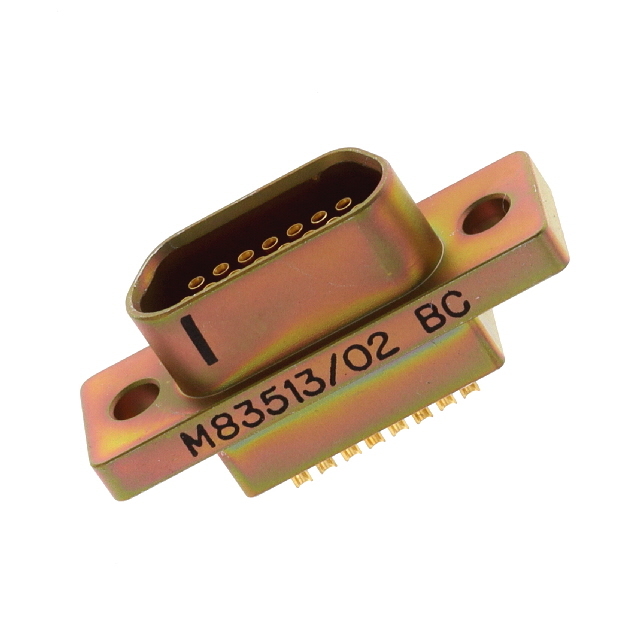

M83513/02-BC

Part No M83513/02-BC
Manufacturer Cinch Connectivity Solutions
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN MICRO-D RCPT 15POS PNL MNT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsD-Sub, D-Shaped ConnectorsD-Sub Connector Assemblies
Mfr Cinch Connectivity Solutions
Series Military, MIL-C-83513, M83513
Packaging Bag
Part Status Active
Connector Style D-Type, Micro-D
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Mounting Type Panel Mount
Shell Size, Connector Layout 0.050 Pitch x 0.043 Row to Row
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Aluminum Alloy, Yellow Chromate Plated Cadmium
Contact Finish Gold
Contact Finish Thickness 50.0μin (1.27μm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Dielectric Material Polyester, Glass Filled
Contact Material Copper Alloy
Operating Temperature -55°C ~ 125°C
Base Product Number M83513/02
Ultra Librarian 3D Model Ultra Librarian M83513/02-BC CAD Model
