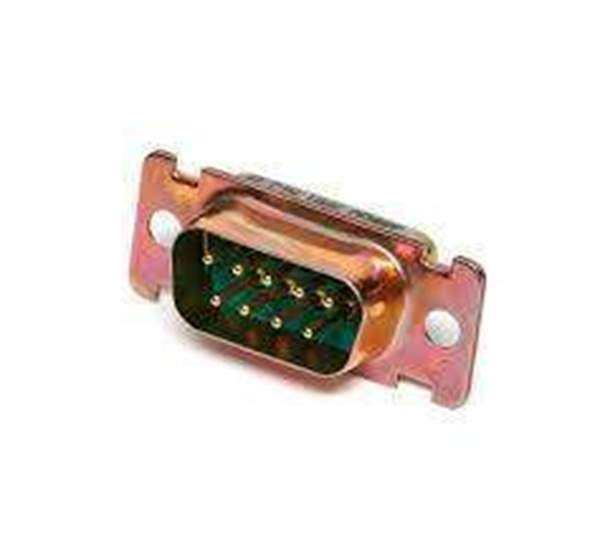

DEMM9P Cinch Connectivity Solutions
Same model may have multiple batches, images only for reference.

DEMM9P

Part No DEMM9P
Manufacturer Cinch Connectivity Solutions
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description DSUB 9 M SOD G50 ZINC
Datasheet
DEMM9P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307271-DEMM9P
Category Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Mfr Cinch Connectivity Solutions
Packaging Bulk
Part Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Panel Mount, Through Hole
Shell Size, Connector Layout 1 (DE, E)
Ultra Librarian 3D Model Ultra Librarian DEMM9P CAD Model

Description

  • Offered in 9, 15, 25, 37, and 50 position plugs and sockets (except right-angle PCB connectors9 , 15, and 25 positions).
  • Available with gold flash or 30µin. gold plating.
  • Offered with .120 mounting holes, optional 4-40 clinch nuts, or dual float bushings (except rightangle PCB connectors-mounting holes only).
  • Approvals:
    UL Recognized - Files E170218 (UL1977) and E130965 (UL1863).
    CSA Approved - File LR31996.
  • See pages 4-5 thru 4-10 for standard dimensions, contact arrangements, and panel mounting specifications.
