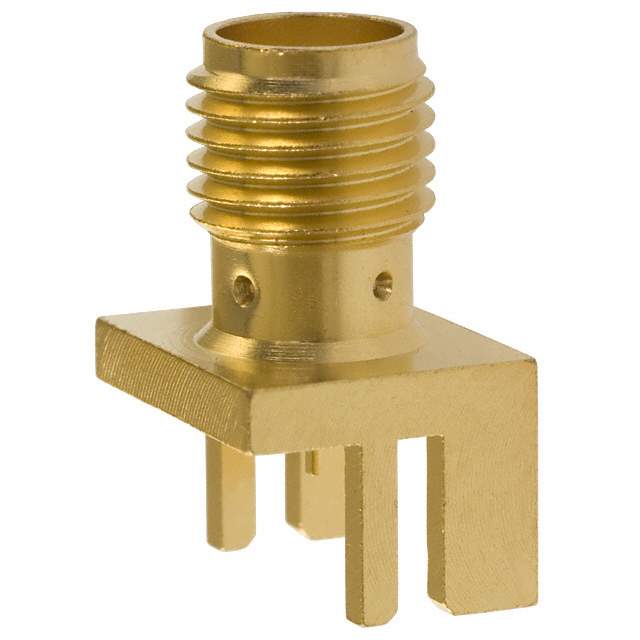

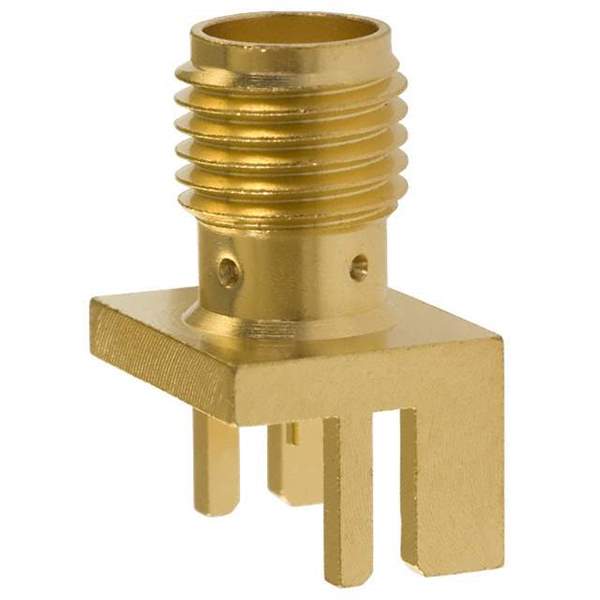

142-0701-841 Real Image
Same model may have multiple batches, images only for reference.

142-0701-841

Part No 142-0701-841
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF)
Description CONN SMA JACK STR 50OHM EDGE MNT
Datasheet
142-0701-841 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Cinch Connectivity Solutions Johnson
Packaging Bulk
Status Active
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting Board Edge, End Launch
Fastening Type Threaded
Maximum Input Frequency 18GHz
Housing Color Gold
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C to 165°C
Center Contact Material Beryllium Copper
Voltage Rating 335V
Mating Cycles 500
Win Source Part Number 038790-142-0701-841
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 142-0701-841 CAD Model

Description

142-0701-841: High-Performance RF Connector

Designed for high-speed applications, the 142-0701-841 RF connector delivers unmatched efficiency and reliability, accommodating a wide range of RF and microwave applications.

  • Applications: Radar systems, RF amplifiers, cellular base stations, wireless communication infrastructure
  • Features & Benefits:
    • High-speed data transmission capabilities
    • Excellent return loss and attenuation characteristics
    • Precision engineering for consistent performance
  • Additional Details: This connector is designed to maintain optimal performance even under challenging environmental conditions.
