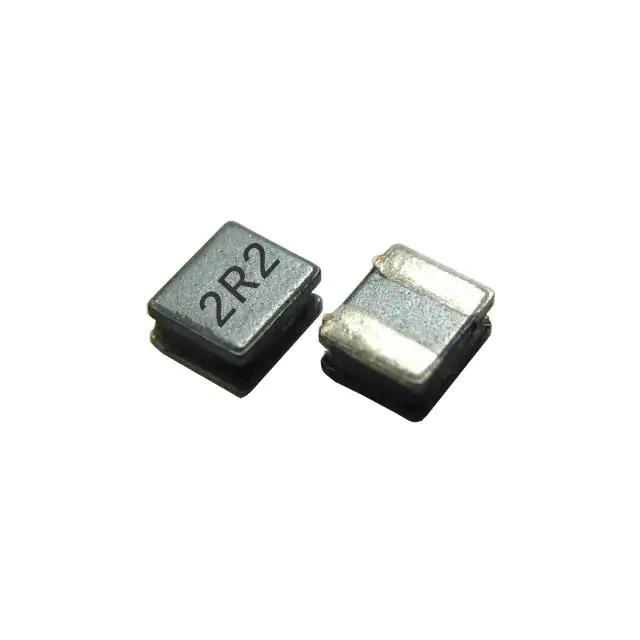

Same model may have multiple batches, images only for reference.
BWVN00322515100M00 Chilisin
Same model may have multiple batches, images only for reference.

BWVN00322515100M00

Part No BWVN00322515100M00
Manufacturer Chilisin
Catalog Fixed Inductors
Description INDUCTOR POWER
Datasheet
BWVN00322515100M00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Chilisin Electronics
Series BWVN
Package Tape & Reel
Product Status Active
Type Wirewound
Material - Core -
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 700 mA
Current - Saturation (Isat) 750mA
Shielding Unshielded
DC Resistance (DCR) 380mOhm
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Features -
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.067" (1.70mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370658-BWVN00322515100M00
Ultra Librarian 3D Model Ultra Librarian BWVN00322515100M00 CAD Model

Description

The Chilisin Electronics BWVN00322515100M00 is a wirewound fixed inductor in the BWVN series.

  • Series: BWVN
  • Mounting Type: Surface Mount
  • Package / Case: 1210 (3225 Metric)
  • Supplier Device Package: 1210
  • Tolerance: ±20%
  • Temperature Range: -40°C to 125°C
  • Inductance: 10 µH
  • Current Rating (Max): 700 mA
  • Shielding: Unshielded
  • DC Resistance (DCR): 380mOhm
