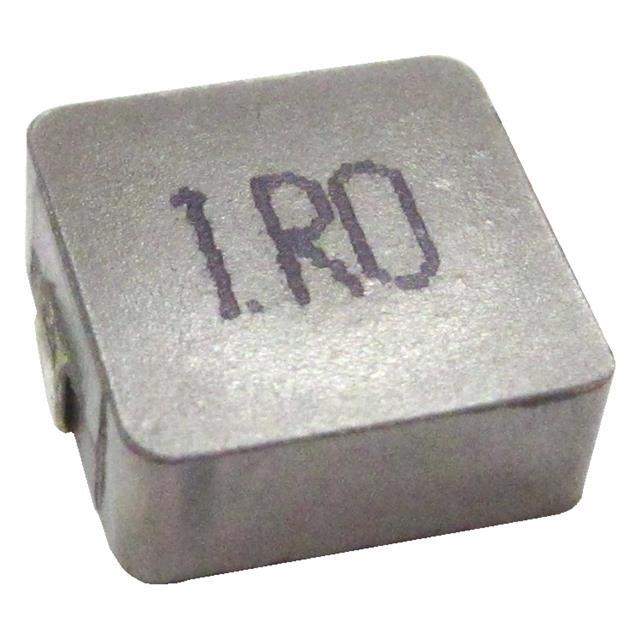

BMRF001717708R2MB1

Part No BMRF001717708R2MB1
Manufacturer Chilisin
Catalog Fixed Inductors
Description INDUCTOR POWER / 8.2 µH Shielded Molded Inductor 15 A 8.6mOhm Max Nonstandard
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Chilisin Electronics
Series BMRX
Package Tape & Reel (TR)
Type Molded
Inductance 8.2 µH
Tolerance ±20%
Current Rating (Amps) 15 A
Current - Saturation (Isat) 20A
Shielding Shielded
DC Resistance (DCR) 8.6mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.675" L x 0.675" W (17.15mm x 17.15mm)
Height - Seated (Max) 0.276" (7.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 553-BMRF001717708R2MB1TR
Standard Package 200
Win Source Part Number 1160398-BMRF001717708R2MB1
Ultra Librarian 3D Model Ultra Librarian BMRF001717708R2MB1 CAD Model

Description

The Chilisin 1160398-BMRF001717708R2MB1 is a molded fixed inductor that is designed to provide reliable performance.

  • Shielded: Yes
  • Inductance: 8.2 µH
  • Current Rating: 15 A
  • Popularity: Low
  • Supply and Demand Status: Shortage
  • Cross-Reference: None
