Same model may have multiple batches, images only for reference.

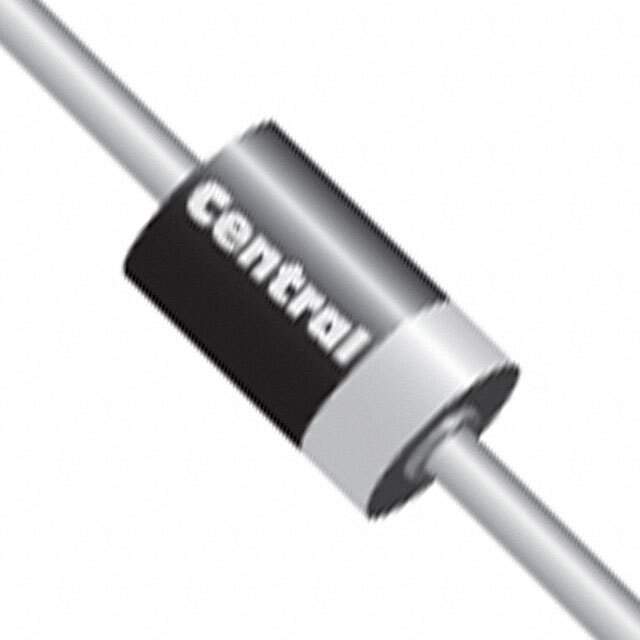

CZ5343B TR PBFREE Real Image
Same model may have multiple batches, images only for reference.

CZ5343B TR PBFREE

Part No CZ5343B TR PBFREE
Manufacturer Central Semiconductor Corp
Catalog Diodes - Zener - Single
Description DIODE ZENER 7.5V 5W DO201  /  Zener Diode 7.5 V 5 W ±5% Through Hole DO-201
Datasheet
CZ5343B TR PBFREE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Zener - Single
Mfr Central Semiconductor Corp
Package Tape & Reel (TR),Cut Tape (CT)
Voltage - Zener (Nom) (Vz) 7.5 V
Tolerance ±5%
Power - Max 5 W
Impedance (Max) (Zzt) 1.5 Ohms
Current - Reverse Leakage @ Vr 100 µA @ 5.7 V
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 1 A
Temperature Range - Operating -65°C ~ 200°C
Mounting Type Through Hole
Package / Case DO-201AA, DO-27, Axial
Supplier Device Package DO-201
Base Product Number CZ5343
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Other Names -CZ5343BTR-ND,1514-CZ5343BTRPBFREETR,CZ5343B TR-ND,-1583-CZ5343BTRPBFREECT,CZ5343BCT,-CZ5343B TR PBFREE,CZ5343B CT-ND,CZ5343BCT-ND,CZ5343BTR-ND,CZ5343B CT,CZ5343B TR LEAD FREE,-CZ5343B TR-ND,CZ5343BTR,1514-CZ5343BTRPBFREECT,CZ5343B TR,-CZ5343B TR,-CZ5343BTR
Standard Package 1,400
Win Source Part Number 1139757-CZ5343B TR PBFREE
Ultra Librarian 3D Model Ultra Librarian CZ5343B TR PBFREE CAD Model

Description

The CZ5343B TR PBFREE is a high-quality zener diode from Central Semiconductor Corp that is perfect for use in a variety of electronic applications.

  • Power Rating: 5 W
  • Voltage Rating: 7.5 V
  • Operating Temperature: -65°C to 200°C
  • Package/Case: DO-201AA, DO-27, Axial
  • Packaging: Tape & reel (TR) and Cut tape (CT)
