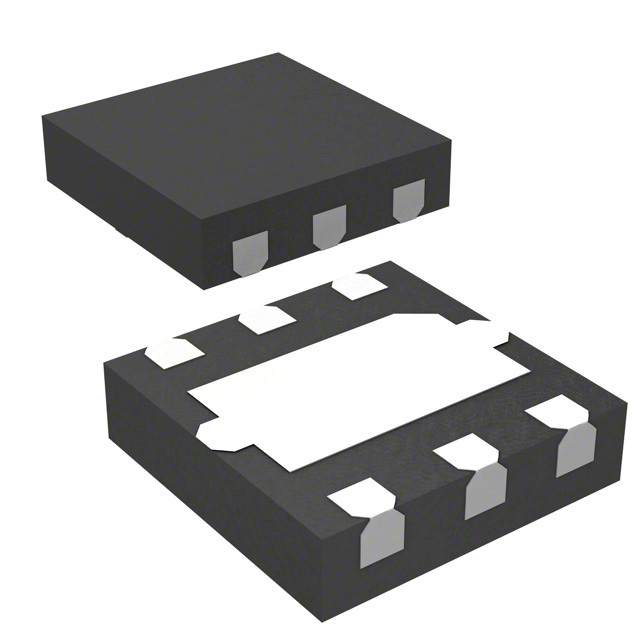

Part No UPG2409T6X-E2
Manufacturer CEL
Catalog RF Switches
Description IC SW SPDT 50MHZ-6GHZ 6-TSON
Datasheet
UPG2409T6X-E2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer CEL
Packaging Reel - TR
Status Obsolete(EOL)
Frequency - Lower 50MHz
Frequency - Upper 6GHz
Isolation @ Frequency 27dB @ 6GHz (typ)
Insertion Loss @ Frequency 0.65dB @ 6GHz
IIP3 60dBm (typ)
Topology Reflective
Circuit SPDT
P1dB 36dBm (typ) IP1dB
Impedance 50 Ohm
Temperature Range - Operating -45°C to 85°C
RF Type 802.11a/b/g/n
Case / Package 6-TSON
Win Source Part Number 396051-UPG2409T6X-E2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian UPG2409T6X-E2 CAD Model

Description

CEL's 396051-UPG2409T6X-E2 is a high-popularity RF/IF and RFID electronic component that is used in various electronic devices.

  • Circuit Topology: The component is designed with a SPDT circuit topology and has a reflective impedance of 50 Ohm.
  • Frequency Range: It has a frequency range of 50MHz to 6GHz, with an isolation of 27dB @ 6GHz (typ) and an insertion loss of 0.65dB @ 6GHz.
  • Performance: The component is known for its high performance and is widely used in the industry.
  • Status: However, it is now obsolete (EOL) and has limited supply and demand.
