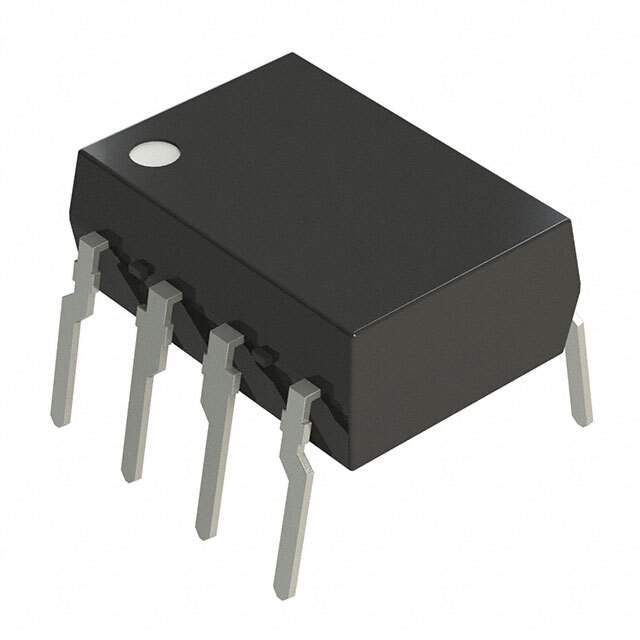

PS9614-A Real Image
Same model may have multiple batches, images only for reference.

PS9614-A

Part No PS9614-A
Manufacturer CEL
Catalog Optoisolators - Logic Output
Description OPTOISO 3.75KV OPEN COLL 8DIP
Datasheet
PS9614-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Tube/Rail
Status Obsolete(EOL)
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 3750Vrms
Common Mode Transient Immunity (Min) 10kV/μs
Input Type DC
Output Type Open Collector
Channel Output Current 25mA
Data Rate 10Mbps
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Rise and Fall Time 20ns, 8ns
Forward Voltage 1.65V
Continuous forward current- Max 30mA
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Case / Package 8-DIP
Win Source Part Number 1090248-PS9614-A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS9614-A CAD Model

Description

The CEL PS9614-A is a single channel open collector output type optocoupler designed for use in isolator applications.

  • Data Rate: 10Mbps
  • Common Mode Transient Immunity (Min): 10kV/μs
  • Isolation Voltage: 3750Vrms
  • Package: 8-DIP
  • Temperature Range: -40°C to 85°C
  • Popularity: Medium
  • Status: Estimated EOL date
