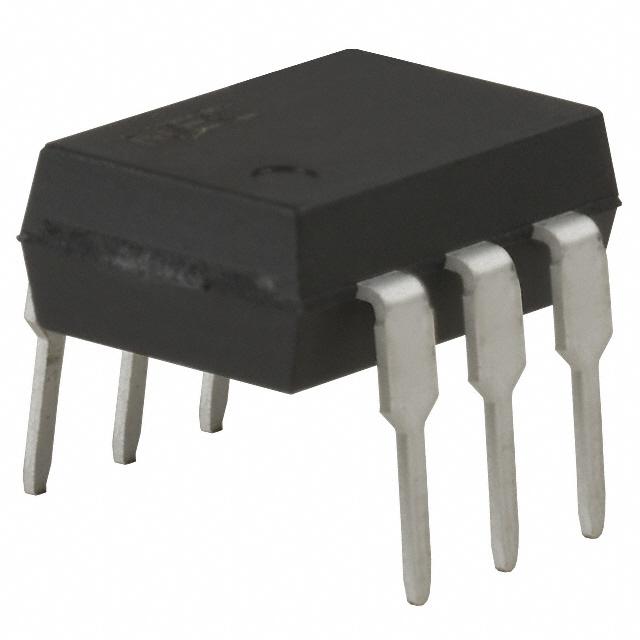

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer CEL
Packaging Tube/Rail
Status Obsolete(EOL)
Circuit SPST-NC (1 Form B)
Output Type AC, DC
Max On Resistance 8 Ohm
Load Current 200mA
Voltage - Input 1.2VDC
Voltage - Load 0 to 250 V
Mounting Through Hole
Termination Style PC Pin
Case / Package 6-DIP
Relay Type Relay
Win Source Part Number 1090107-PS7122A-1B-A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS7122A-1B-A CAD Model

Description

The CEL PS7122A-1B-A relay is a through-hole mounted, SPST-NC (1 Form B) circuit relay with a load current of 200mA and a voltage load range of 0 to 250V.

  • Relay Type: AC/DC
  • On Resistance (Max): 8 ohms
  • Package: 6-DIP
  • Status: obsolete (EOL)
  • Voltage Input: 1.2VDC
  • Termination Style: PC pin
  • Supply and Demand Status: balance
