Same model may have multiple batches, images only for reference.

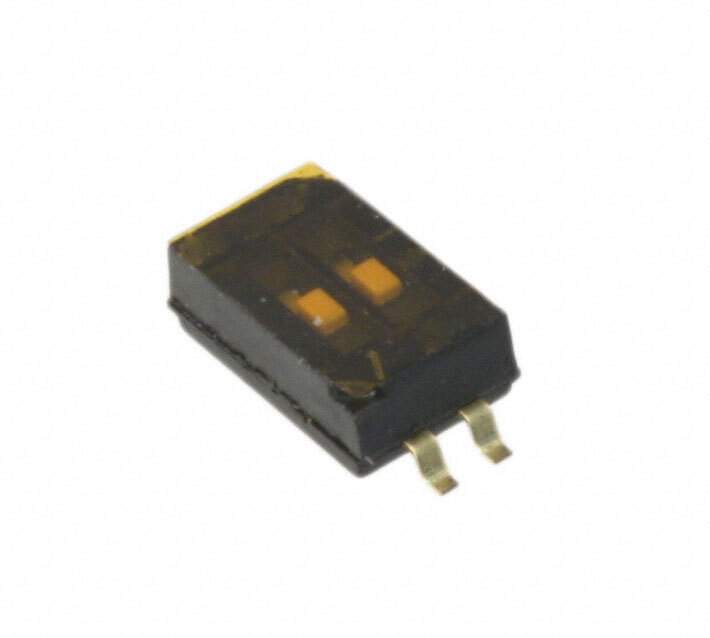

TDA02H0SB1 Real Image
Same model may have multiple batches, images only for reference.

TDA02H0SB1

Part No TDA02H0SB1
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Datasheet
TDA02H0SB1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 18 Weeks
Features Dip Switch SPST Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Manufacturer C&K Components
Series TDA
Package Tube
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Family Name TDA02H0S
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number *TDA02H0SB1, CKN9064
Quantity per package 125
Popularity High
Supply and Demand Status Balance
Win Source Part Number 899386-TDA02H0SB1
Ultra Librarian 3D Model Ultra Librarian TDA02H0SB1 CAD Model

Description

The C&K Components 899386-TDA02H0SB1 is an electronic component that falls under the category of switches.

  • Type: dip switch SPST
  • Position: position
  • Mounting: surface mount
  • Actuator: slide (standard)
  • Current Rating: 25mA
  • Voltage Rating: 24VDC
  • Supply and Demand Status: balanced
  • Series: TDA series
  • Operating Temperature Range: -40°C to 85°C
  • Package: tube
  • Mounting: surface mount
  • Win Source Part Number: 899386-TDA02H0SB1
  • Other Part Numbers: *TDA02H0SB1, CKN9064
  • Availability: check availability before purchase
