Same model may have multiple batches, images only for reference.

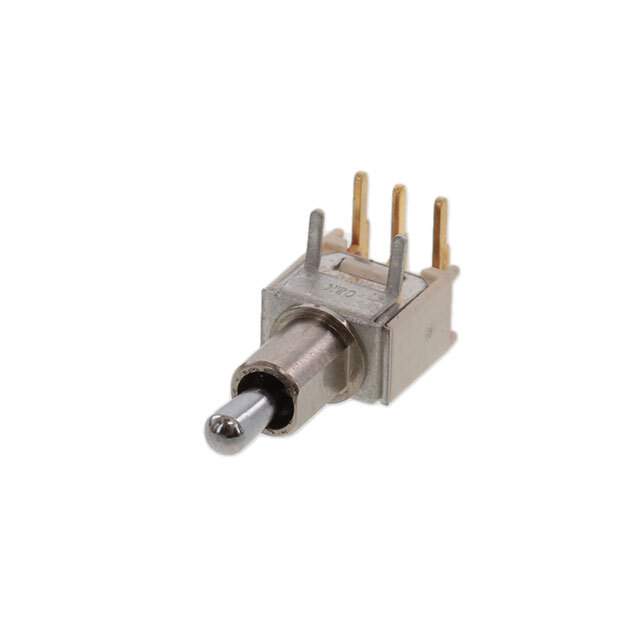

T105MH9ABE Real Image
Same model may have multiple batches, images only for reference.

T105MH9ABE

Part No T105MH9ABE
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 0.4VA 20V / Toggle Switch SPDT Through Hole, Right Angle
Datasheet
T105MH9ABE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr C&K
Series T
Package Bulk
Mounting Type Through Hole, Right Angle
Circuit SPDT
Switch Function Mom-Off-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard Round
Actuator Length 5.33mm
Illumination Non-Illuminated
Termination Style PC Pin
Bushing Thread Unthreaded
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 30,000 Cycles
Base Product Number T105
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 2266-T105MH9ABE,*T105MH9ABE,CKN1386
Standard Package 1
Win Source Part Number 1025592-T105MH9ABE
Ultra Librarian 3D Model Ultra Librarian T105MH9ABE CAD Model

Description

The T series toggle switch from C&K Components is a SPDT switch that is PC pin terminated.

  • Manufacturer: C&K Components
  • Switch Type: SPDT Toggle
  • Termination: PC Pin
  • Operating Temperature: -30°C to 85°C
  • Electrical Life: 30,000 cycles
  • REACH: Affected
  • ECCN: EAR99
