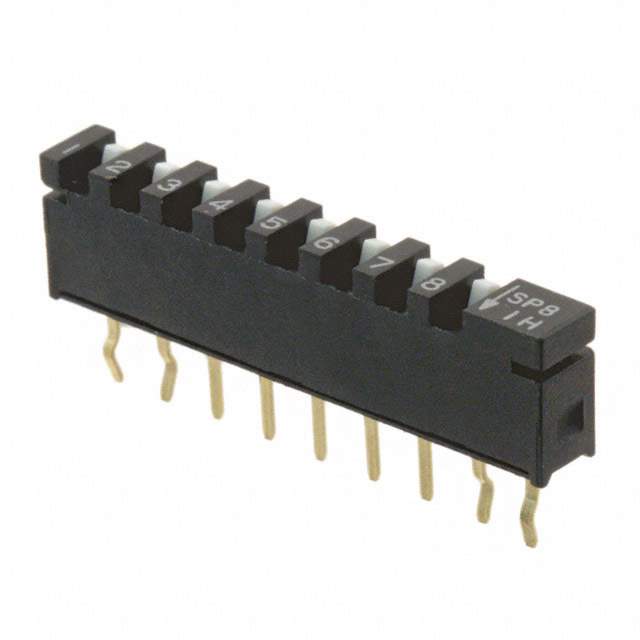

SPA08B Real Image
Same model may have multiple batches, images only for reference.

SPA08B

Part No SPA08B
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 10MA 20V  /  Dip Switch SPST 8 Position Through Hole Slide (Standard) Actuator 10mA 20VDC
Datasheet
SPA08B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SPA
Circuit SPST
Number of Positions 8
Current Rating (Amps) 10mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.244" (6.20mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -30°C ~ 60°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.942" (23.92mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Other Names 2266-SPA08B,CKN9444,*SPA08B
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233691-SPA08B
Ultra Librarian 3D Model Ultra Librarian SPA08B CAD Model

Description

This SPA series DIP switch electronic component has 8 number of positions and a pitch of 0.100" (2.54mm), Full.

  • Manufacturer:
  • Number of Positions: 8
  • Pitch: 0.100" (2.54mm), Full
  • Termination Style: PC Pin
  • Contact Finish: Gold
  • Contact Material: Beryllium Copper
  • Voltage Rating: 20VDC
  • Height Above Board: 0.244" (6.20mm)
  • Length: 0.942" (23.92mm)
  • Standard Package: 20
  • Body Material: Polyphenylene Sulfide (PPS)
  • Circuit: SPST
  • Actuator Type: Slide (standard)
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Actuator Level: Flush, recessed
  • Washable: Yes
  • Mounting Type: Through hole
  • Temperature Range: -30°C ~ 60°C
