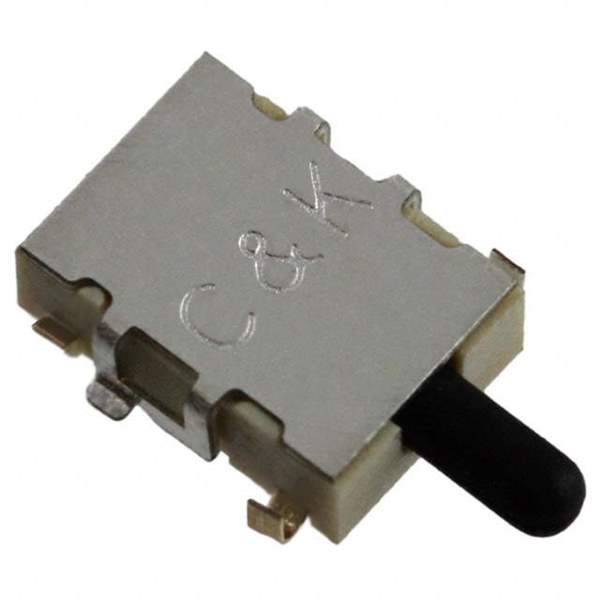

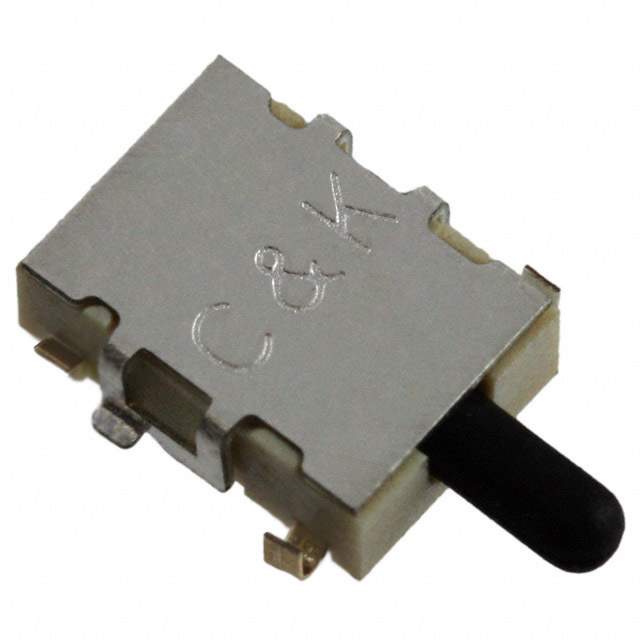

SDS005R Real Image
Same model may have multiple batches, images only for reference.

SDS005R

Part No SDS005R
Manufacturer C&K Components
Catalog Snap Action, Limit Switches
Description SWITCH DETECT SPST-NC 100MA 12V / Switch SPST-NC Surface Mount, Right Angle
Datasheet
SDS005R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr C&K
Series SDS
Package Tape & Reel
Circuit SPST-NC
Switch Function On-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 12 V
Actuator Type Overtravel Plunger
Mounting Type Surface Mount, Right Angle
Termination Style SMD (SMT) Tab
Operating Force 75gf
Overtravel 0.079" (2.0mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Other Names 2266-SDS005R,SDS005R,CKN10233TR,CKN10233DKR,*SDS005R,CKN10233CT
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233678-SDS005R
Ultra Librarian 3D Model Ultra Librarian SDS005R CAD Model

Description

The SDS series limit switch from C&K is a surface mount, right angle switch with an overtravel plunger actuator type and SPST-NC circuit.

  • Actuator Type: Overtravel Plunger
  • Circuit: SPST-NC
  • Voltage Rating: 12V DC
  • Operating Force: 75gf
  • Switch Function: On-Mom
  • Electrical Life: 50,000 Cycles
  • Differential Travel: 0.079" (2.0mm)
  • Operating Temperature: -40°C ~ 85°C
  • Package: Tape & Reel
  • Standard Package: 3,000
