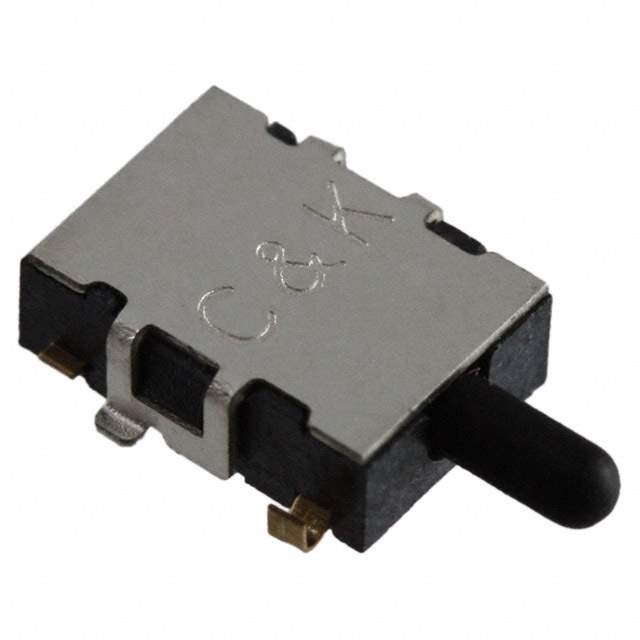

SDS004 Real Image
Same model may have multiple batches, images only for reference.

SDS004

Part No SDS004
Manufacturer C&K Components
Catalog Snap Action, Limit Switches
Description SWITCH DETECT SPST-NO 100MA 12V / Switch SPST-NO Surface Mount, Right Angle
Datasheet
SDS004 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr C&K
Series SDS
Package Tray
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 12 V
Actuator Type Overtravel Plunger
Mounting Type Surface Mount, Right Angle
Termination Style SMD (SMT) Tab
Operating Force 75gf
Overtravel 0.079" (2.0mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Other Names *SDS004,2266-SDS004,CKN9484
Standard Package 2,700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233677-SDS004
Ultra Librarian 3D Model Ultra Librarian SDS004 CAD Model

Description

The SDS series limit switch from C&K is an SPST-NO circuit switch with an off-mom switch function.

  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Voltage Rating: 12V DC
  • Operating Force: 75gf
  • Actuator Type: Overtravel Plunger
  • Mechanical Life: 50,000 Cycles
  • Electrical Life: 50,000 Cycles
  • Mounting Type: Surface Mount, Right Angle
  • Temperature Range: -40°C to 85°C
  • MSL Level: 1 (Unlimited)
  • Current Rating: 100mA (DC)
  • REACH: Unaffected
  • HTSUS: 8536.50.7000
  • Package: Tray
  • Standard Package: 2,700
  • ECCN: EAR99
