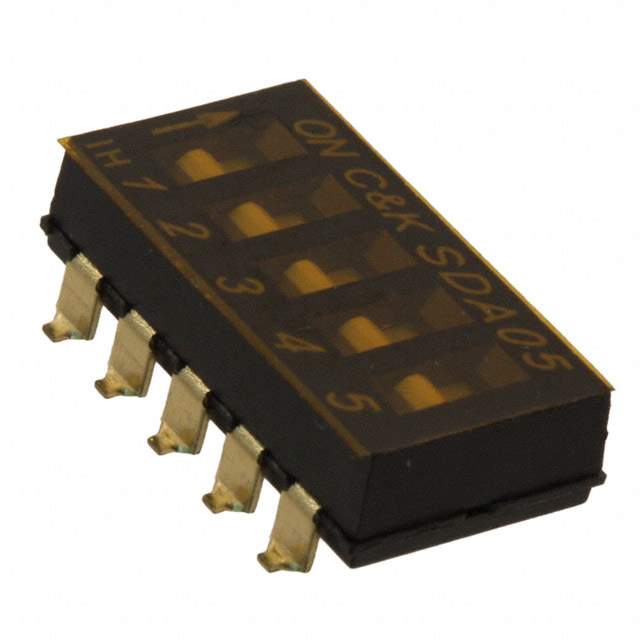

SDA05H0SBR Real Image
Same model may have multiple batches, images only for reference.

SDA05H0SBR

Part No SDA05H0SBR
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 5 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Datasheet
SDA05H0SBR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tape & Reel
Circuit SPST
Number of Positions 5
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.175" (4.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.578" (14.68mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA05H
Other Names CKN9494DKR,CKN9494TR,*SDA05H0SBR,2266-SDA05H0SBR,CKN9494CT
Standard Package 750
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233786-SDA05H0SBR
Ultra Librarian 3D Model Ultra Librarian SDA05H0SBR CAD Model

Description

The SDA05H0SBR is a 5-position SPST slide DIP switch manufactured by C&K.

  • Positions: 5
  • Circuit: SPST
  • Actuator Type: Slide
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Pitch: 0.100" (2.54mm)
  • Termination Style: Gull Wing
  • Contact Material: Beryllium Copper
  • Contact Finish: Gold
  • Mounting Technology: Surface Mount (SMT)
  • Height Above Board: 0.175" (4.45mm)
  • Washable: Yes
  • Temperature Range: -40°C to 85°C
  • Mechanical Life: 1,000 cycles
  • Electrical Life: 1,000 cycles
  • Actuator Level: Flush or Recessed
  • Tape Seal: Yes
  • Material: Polyphenylene Sulfide (PPS)
  • Packaging: Tape and Reel
  • Standard Package: 750
