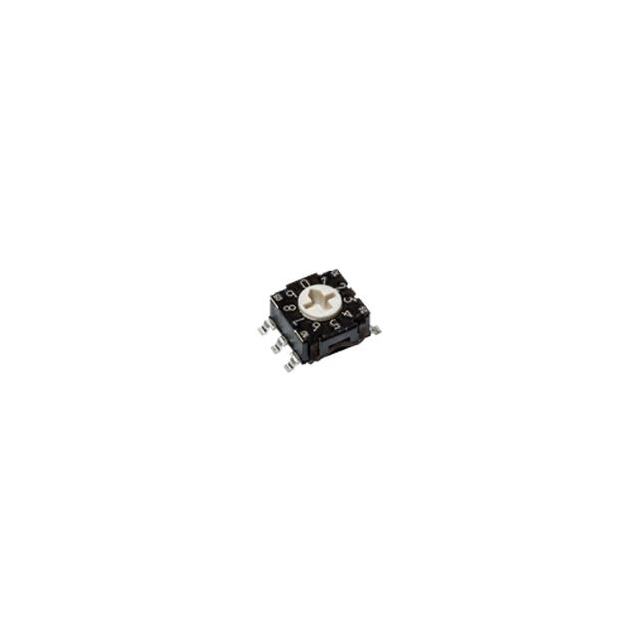

RTE1010R14 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series RTE
Package Tube
Circuit BCD
Number of Positions 10
Current Rating (Amps) 100mA
Voltage Rating 30VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Material Bronze
Contact Finish Gold
Mounting Type Through Hole, Reverse
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -25°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.291" (7.40mm)
Mechanical Life 20,000 Steps
Base Product Number RTE1010R
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
Other Names -RTE1010R14,*RTE1010R14,Y36C10113FP LFT
Standard Package 1,950
Win Source Part Number 1199765-RTE1010R14
Ultra Librarian 3D Model Ultra Librarian RTE1010R14 CAD Model

Description

The C&K RTE1010R14 is a DIP switch with a BCD circuit and rotary actuator type.

  • Circuit: BCD
  • Actuator Type: Rotary
  • Number of Positions: 10
  • Pitch: 0.100" (2.54mm), Full
  • Termination Style: PC Pin
  • Contact Finish: Gold
  • Voltage Rating: 30VDC
  • Operating Temperature: -25°C to 85°C
  • Mechanical Life: 20,000 Steps
  • Actuator: Flush, Recessed
  • Win Source Part Number: 1199765-RTE1010R14
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8536.50.9020
