Same model may have multiple batches, images only for reference.

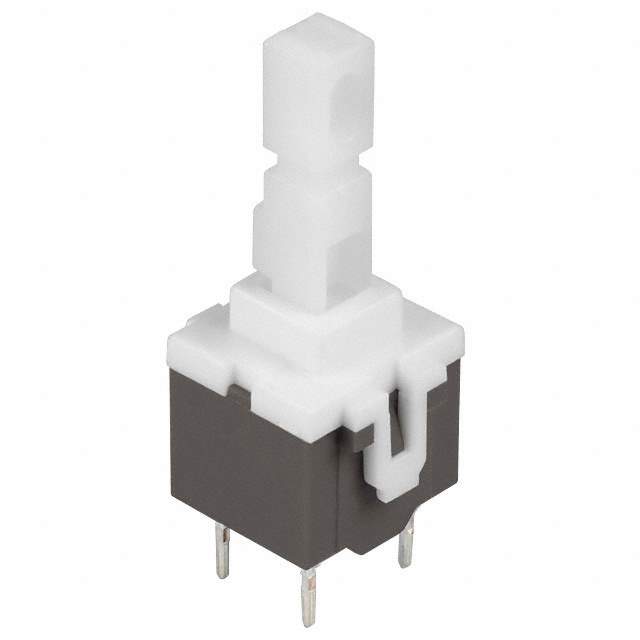

PVA1 OA H2 1.2N V2 Real Image
Same model may have multiple batches, images only for reference.

PVA1 OA H2 1.2N V2

Part No PVA1 OA H2 1.2N V2
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH DPST-NO 0.1A 32V / Pushbutton Switch DPST-NO Keyswitch Through Hole
Datasheet
PVA1 OA H2 1.2N V2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K
Series PVA
Package Bulk
Mounting Type Through Hole
Type Keyswitch
Circuit DPST-NO
Switch Function Off-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 32 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Color - Actuator/Cap White
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 100,000 Cycles
Base Product Number PVA1
Standard Package 1,200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1349320-PVA1 OA H2 1.2N V2
Ultra Librarian 3D Model Ultra Librarian PVA1 OA H2 1.2N V2 CAD Model

Description

The PVA1OA H2 1.2N V2 keyswitch from C&K is a double-pole single-throw (DPST-NO) circuit with an off-mom switch function.

  • Circuit: DPST-NO
  • Function: Off-Mom
  • Voltage Rating: 32VDC
  • Current Rating: 100mA
  • Electrical Life: 100,000 Cycles
  • Actuator Type: Plunger for Cap
  • Actuator/Cap Color: White
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 85°C
  • Package: Bulk
  • Standard Package: 1,200
