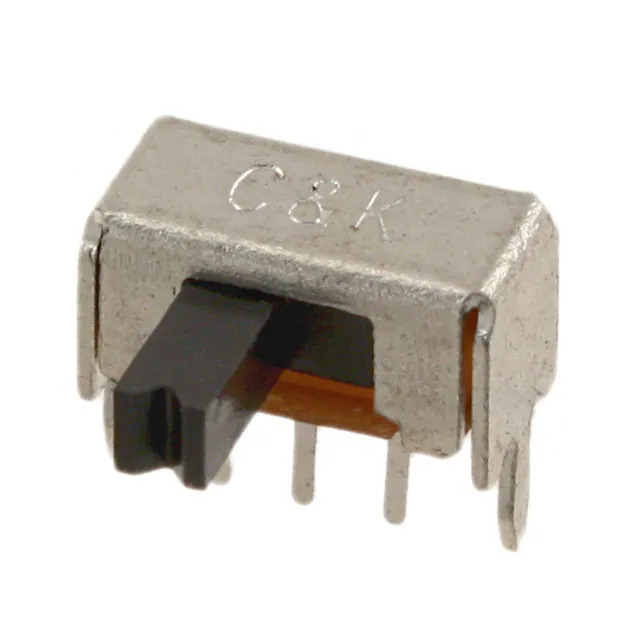

OS102011MA1QS1 C&K Components
Same model may have multiple batches, images only for reference.

OS102011MA1QS1

Part No OS102011MA1QS1
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE SPDT 100MA 12V
Datasheet
OS102011MA1QS1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr C&K
Series OS
Package Bulk
Product Status Active
Circuit SPDT
Contact Timing Shorting (MBB)
Switch Function On-On
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 12 V
Actuator Type Standard
Actuator Length 4.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 70°C
Actuator Material Polyoxymethylene (Acetal) (POM)
Switch Travel 2.00mm
Mechanical Life 10,000 Cycles
Electrical Life 10,000 Cycles
Operating Force -
Base Product Number OS102011
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376216-OS102011MA1QS1
Ultra Librarian 3D Model Ultra Librarian OS102011MA1QS1 CAD Model

Description

The C&K OS102011MA1QS1 is a slide switch from the OS series.

  • Mounting Type: Through Hole, Right Angle
  • Termination Style: PC Pin
  • Current Rating: 100mA (DC)
  • Voltage Rating: 12VDC
  • Circuit Configuration: SPDT
  • Switch Function: On-On
  • Actuator Type: Standard
  • Switch Travel: 2.00mm
  • Actuator Length: 4.00mm
  • Actuator Material: Polyoxymethylene (Acetal) (POM)
