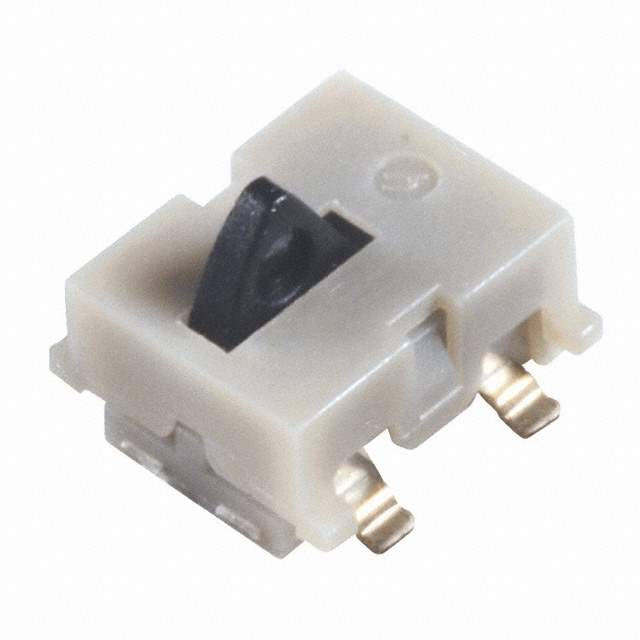

HDT0004 Real Image
Same model may have multiple batches, images only for reference.

HDT0004

Part No HDT0004
Manufacturer C&K Components
Catalog Snap Action, Limit Switches
Description SWITCH DETECTOR SPST-NO 1MA 5V / Switch SPST-NO Surface Mount
Datasheet
HDT0004 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Manufacturer C&K
Packaging Reel - TR
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 1mA (DC)
Voltage Rating - DC 5 V
Actuator Type Angled Toggle (Detector)
Mounting Surface Mount
Termination Style SMD (SMT) Tab
Operating Force 35gf
Pretravel 0.012" (0.3mm)
Overtravel 0.039" (1.0mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.138" (3.5mm)
Electrical Life 100,000 Cycles
Mechanical Life 100,000 Cycles
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Other Part Number 2266-HDT0004,CKN9956TR,*HDT0004,CKN9956DKR,HDT0004-ND,CKN9956CT
Standard Package 2,800
Win Source Part Number 1323802-HDT0004
Ultra Librarian 3D Model Ultra Librarian HDT0004 CAD Model

Description

The C&K 1323802-HDT0004 is a surface mount SPST-NO switch, with an angled toggle (detector) actuator type.

  • Voltage Rating: 5V DC
  • Operating Force: 35gf
  • Electrical Life: 100,000 cycles
  • Mechanical Life: 100,000 cycles
  • Operating Position: 0.138" (3.5mm)
  • Pretravel: 0.012" (0.3mm)
  • Overtravel: 0.039" (1.0mm)
  • Switch Function: Off-Mom
  • Termination Style: SMD (SMT) Tab
  • Temperature Range: -40°C to 85°C
