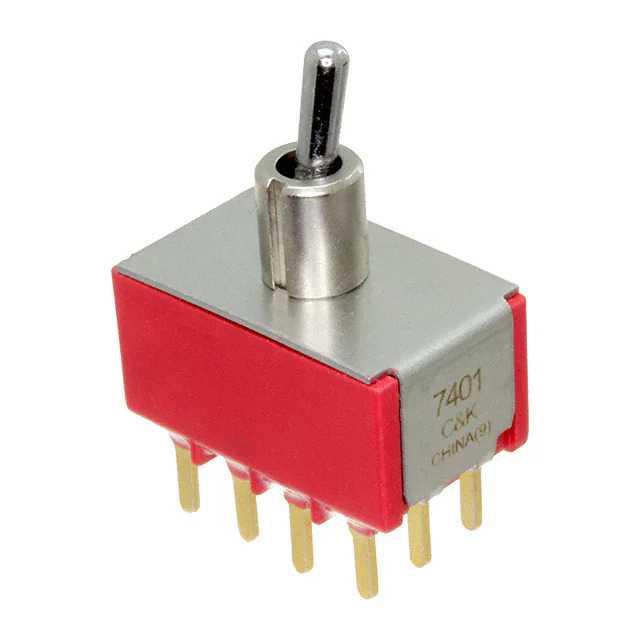

7401P3YZGE C&K Components
Same model may have multiple batches, images only for reference.

7401P3YZGE

Part No 7401P3YZGE
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH TOGGLE 4PDT 5A 120V
Datasheet
7401P3YZGE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr C&K
Series 7000
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit 4PDT
Switch Function On-On
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Flat Anti-Rotation
Actuator Length 11.43mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 6.35mm Dia
Bushing Thread 1/4-40
Ingress Protection -
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 100,000 Cycles
Base Product Number 7401P3
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375982-7401P3YZGE
Ultra Librarian 3D Model Ultra Librarian 7401P3YZGE CAD Model

Description

The 7401P3YZGE is a toggle switch from C&K's 7000 series.

  • Mounting Type: Panel Mount
  • Current Rating: 5A (AC/DC)
  • Circuit: 4PDT
  • Switch Function: On-On
  • Voltage Rating: 120V AC and 28V DC
  • Actuator Type: Flat Anti-Rotation
  • Actuator Material: Brass, Chrome Plated
  • Illumination: Non-Illuminated
  • Termination Style: Solder Lug
  • Panel Cutout Dimension: 6.35mm diameter
  • Electrical Life: 100,000 cycles
  • Features: Epoxy Sealed Terminals
