Same model may have multiple batches, images only for reference.

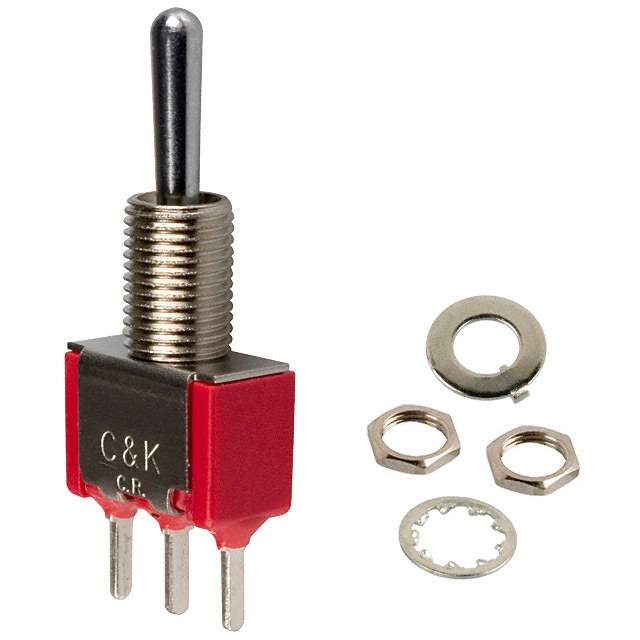

7103SYCQE Real Image
Same model may have multiple batches, images only for reference.

7103SYCQE

Part No 7103SYCQE
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 5A 120V / Toggle Switch SPDT Panel Mount
Datasheet
7103SYCQE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr C&K
Series 7000
Package Bulk
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-Off-On
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Standard Round
Actuator Length 10.67mm
Illumination Non-Illuminated
Termination Style PC Pin
Panel Cutout Dimensions Circular - 6.35mm Dia
Bushing Thread 1/4-40
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 40,000 Cycles
Base Product Number 7103
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Other Names CKN1005,*7103SYCQE
Standard Package 1
Win Source Part Number 1004598-7103SYCQE
Ultra Librarian 3D Model Ultra Librarian 7103SYCQE CAD Model

Description

The 1004598-7103SYCQE toggle switch from C&K is a SPDT circuit switch with On-Off-On switch function.

  • Circuit: SPDT
  • Switch Function: On-Off-On
  • Mounting: panel mount
  • Actuator Type: round standard
  • Actuator Length: 10.67mm
  • Actuator Material: brass
  • Actuator Plating: chrome plated
  • Bushing Thread: 1/4-40
  • Voltage Rating: 120V AC and 28V DC
  • Current Rating: 5A (AC/DC)
  • Electrical Life: 40,000 cycles
  • Illumination: non-illuminated
  • Ingress Protection: none
  • Operating Temperature: -30°C to 85°C
  • Sealing: epoxy sealed
  • Panel Cutout: circular 6.35mm Dia.
  • REACH: affected
