The NMH0505D is an isolated DC-DC converter manufactured by C&D Technologies (now Murata Power Solutions). It's designed to provide electrical isolation between the input and output, making it suitable for applications where safety or noise reduction is critical. The NMH0505D converts a 5V DC input to a 5V DC output while providing isolation.

Applications

• Industrial automation: Isolating control signals and power supplies in industrial equipment.
• Medical devices: Providing isolation in patient monitoring equipment and other medical applications.
• Test and measurement equipment: Isolating sensitive measurement circuits from noise and ground loops.
• Power over Ethernet (PoE) applications: Supplying isolated power to network devices.
• Isolated gate drivers: Providing isolated power to gate drivers for power MOSFETs and IGBTs.

Features

• 1kVDC isolation: Provides electrical isolation between input and output.
• 5V input and output: Converts 5V DC to 5V DC.
• Compact size: Enables integration into space-constrained applications.
• High efficiency: Minimizes power losses during conversion.
• Short-circuit protection: Protects the converter and load from damage due to short circuits.

Benefits

• Enhanced safety: Electrical isolation protects against shock hazards.
• Reduced noise: Isolation minimizes ground loops and noise interference.
• Improved system reliability: Short-circuit protection prevents damage from electrical faults.
• Simplified system design: Integrated isolation simplifies the design process.
• Compliance with safety standards: Meets relevant safety standards for isolated power supplies.

Additional Details

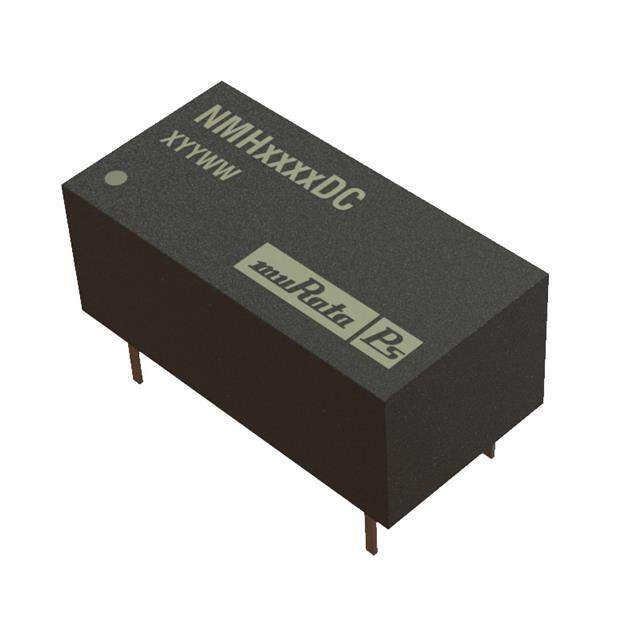

The NMH0505D typically comes in a small, encapsulated package. Important specifications include the input voltage range, output voltage accuracy, isolation voltage, and operating temperature range. Consult the datasheet for detailed electrical characteristics and application guidelines. It also incorporates continuous short circuit protection with auto recovery feature.
