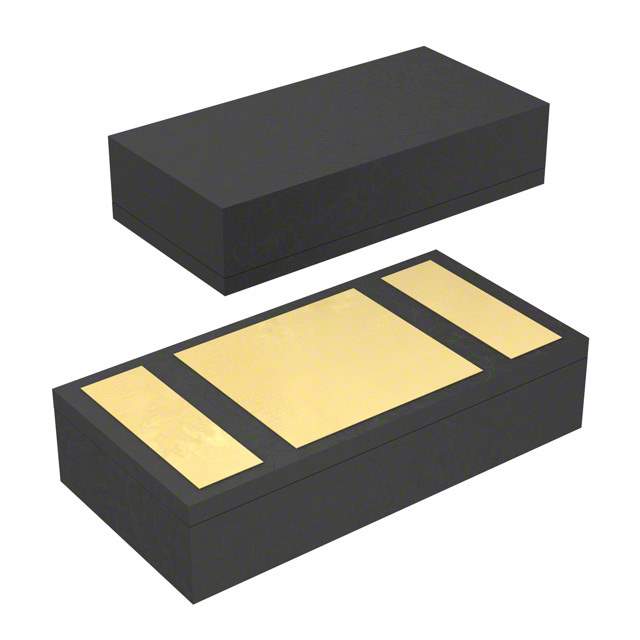

VMMK-3803-BLKG Real Image
Same model may have multiple batches, images only for reference.

VMMK-3803-BLKG

Part No VMMK-3803-BLKG
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description 3 - 11 GHz UWB Low Noise Amplifier in SMT Package | IC AMP 802.16 WIMAX 3-11GHZ 0402
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Strip
Status Obsolete
Frequency 3GHz ~ 11GHz
P1dB 9dBm
Gain 20dB
Noise Figure 1.5dB
RF Type 802.16 WiMAX
Supply Voltage (V) 3V ~ 5V
Supply Current 20mA
Test Frequency 6GHz
Manufacturer Package 0402 (1005 Metric)
Supplier Device Package 0402
Manufacturer Pack Quantity 100
MSL Level 2 (1 Year)
Win Source Part Number 1279414-VMMK-3803-BLKG
Manufacturer Homepage www.avagotech.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VMMK-3803-BLKG CAD Model

Description

The Broadcom Limited 1279414-VMMK-3803-BLKG is a strip-packaged RF/IF and RFID component with a test frequency of 6GHz and a frequency range of 3GHz to 11GHz.

  • Manufacturer: Broadcom Limited
  • Test Frequency: 6GHz
  • Frequency Range: 3GHz to 11GHz
  • Gain: 20dB
  • Supply Current: 20mA
  • Noise Figure: 1.5dB
  • P1dB: 9dBm
  • RF Type: 802.16 WiMAX
  • Supplier Device Package: 0402
  • Manufacturer Package: 0402 (1005 Metric)
  • Family: HSMP-4810
  • Supply Voltage Range: 3V to 5V
  • Manufacturer Pack Quantity: 100
  • MSL Level: 2 (1 Year)
