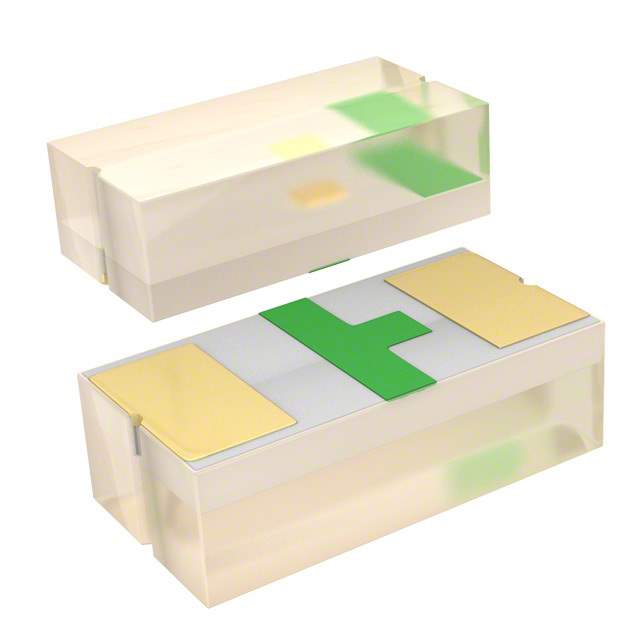

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tape and Reel
Color Amber
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 90mcd
Lens Style Rectangle with Flat Top
Lens Size 1.00mm x 0.50mm
Voltage - Forward (Vf) 1.9V
Current - Test 20mA
Viewing Angle 130°
Mounting Style SMD
Wavelength - Dominant 592nm
Wavelength - Peak 595nm
Manufacturer Package 0402 (1005 Metric)
Parts Dimension 1.00mm L x 0.50mm W
Height (Maximum) 0.40mm
Family Part Number HSMA-C280
Manufacturer Pack Quantity 4,000
MSL Level 2A (4 Weeks)
Win Source Part Number 1181826-HSMA-C280
Manufacturer Homepage www.avagotech.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HSMA-C280 CAD Model

Description

This component is a rectangle with a flat top and has a lens size of 1.00mm x 0.50mm.

  • Viewing Angle: 130 degrees
  • Lens Color: white with diffused transparency
  • Millicandela Rating: 90mcd
  • Current Test: 20mA
  • Wavelength-Dominant: 592nm
  • Wavelength-Peak: 595nm
  • Manufacturer Package: 0402 (1005 Metric)
  • Height (Maximum): 0.40mm
  • Win Source Part Number: 1181826-HSMA-C280
