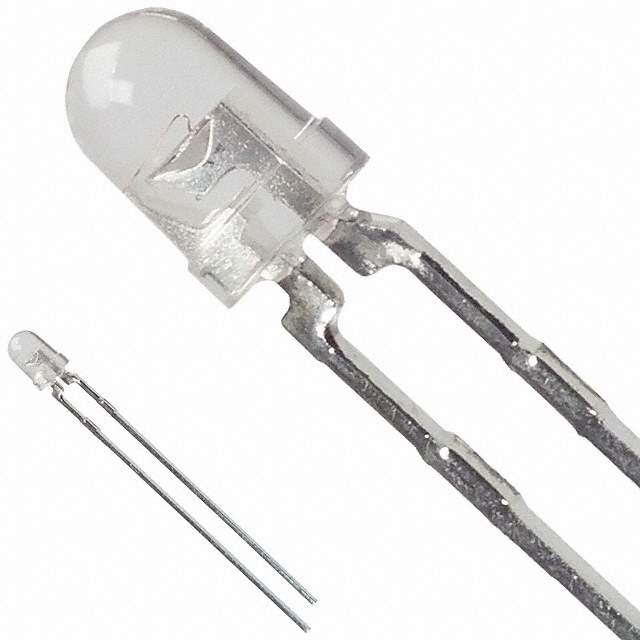

HLMP-1340 Real Image
Same model may have multiple batches, images only for reference.

HLMP-1340

Part No HLMP-1340
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description CLEAR LENS T-100 SOLID STATE LAMPS | LED RED CLEAR T-1 T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Bulk
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 55mcd
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage - Forward (Vf) 1.9V
Current - Test 20mA
Viewing Angle 24°
Mounting Style Through Hole
Wavelength - Dominant 626nm
Wavelength - Peak 635nm
Manufacturer Package Radial
Supplier Device Package T-1
Height (Maximum) 6.35mm
Family Part Number HLMP-1340
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Win Source Part Number 1180860-HLMP-1340
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HLMP-1340 CAD Model

Description

The HLMP-1340 manufactured by Broadcom Limited is a high-quality LED component.

  • Viewing Angle: 24 degrees
  • Millicandela Rating: 55mcd
  • Wavelength-Dominant: 626nm
  • Peak Wavelength: 635nm
  • Configuration: standard
  • Lens Color: colorless
  • Lens Transparency: clear
  • Lens Style: T-1
  • Lens Size: 3mm
  • Supply and Demand Status: limited
  • Popularity: medium
