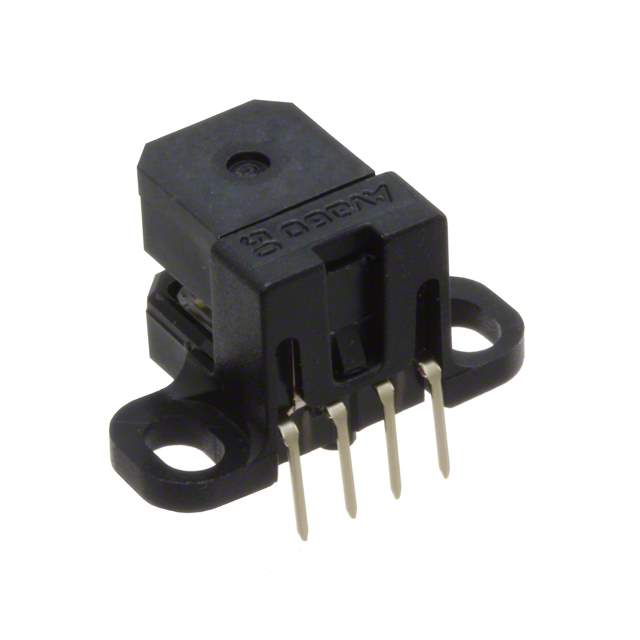

HEDS-9700#E50 Real Image
Same model may have multiple batches, images only for reference.

HEDS-9700#E50

Part No HEDS-9700#E50
Manufacturer Broadcom Limited
Catalog Encoders
Description Optical Encoder Rotary Incremental Straight Digital Through Hole PC Pin 200CPR / ENCODER SMALL 2CH 200CPR STD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Status Active
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 200
Supply Voltage - Operating 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Termination Style Terminal Pins
Win Source Part Number 1043041-HEDS-9700#E50
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 50
Family Name HEDS-9700
Introduction Date January 01, 2006
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HEDS-9700#E50 CAD Model

Description

The Broadcom Limited HEDS-9700#E50 is an optical encoder manufactured by Broadcom Limited.

  • Output Type: Quadrature (Incremental)
  • Supply Voltage: 5V
  • Mounting Style: Chassis Mount
  • Termination Style: Terminal Pins
  • Pulses per Revolution: 200
  • Category: Sensors, Transducers
  • Part Status: Active
  • Estimated EOL Date: 2027
  • Popularity: High
