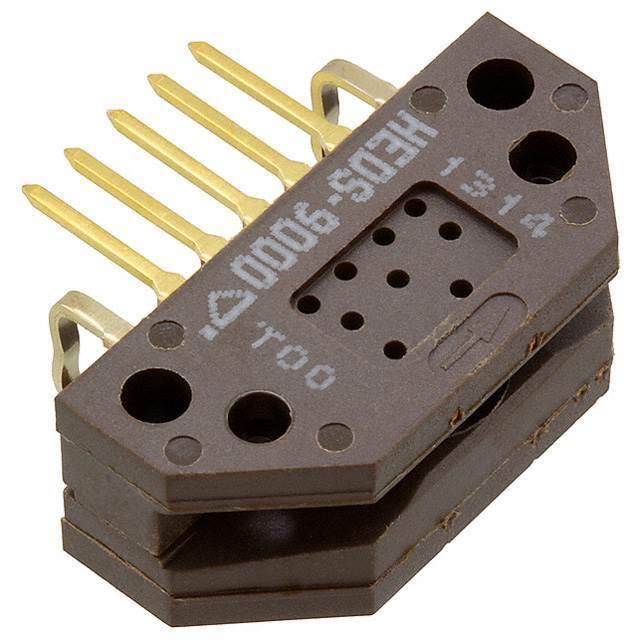

HEDS-9000#T00 Real Image
Same model may have multiple batches, images only for reference.

HEDS-9000#T00

Part No HEDS-9000#T00
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER MODULE 2CH 2000CPR / Optical Encoder Rotary Incremental Straight Digital Through Hole PC Pin 2000CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series HEDS
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 2000
Operating Supply Voltage 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Orientation Vertical
Termination Style Terminal Pins
Win Source Part Number 775876-HEDS-9000#T00
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name HEDS-9000
Introduction Date May 31, 2005
Country of Origin Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HEDS-9000#T00 CAD Model

Description

The Broadcom Limited HEDS series encoder is an optical encoder manufactured by Broadcom Limited that has a quadrature (incremental) output type and is designed for chassis mounting.

  • Operating Supply Voltage: 5V
  • Encoder Type: Optical
  • Pulses Per Revolution: 2000
  • Detent: No
  • Rotational Life: Not specified
  • Codewheel: Not included
  • Built-in Switch: No
  • Suitable for use in: Sensors and transducers
  • Estimated EOL Date: 2027
  • Halogen-Free: No
  • Supply and Demand Status: Limited
  • Package Quantity: 100
