Part No HEDS-5500#A11
Manufacturer Broadcom Limited
Catalog Encoders

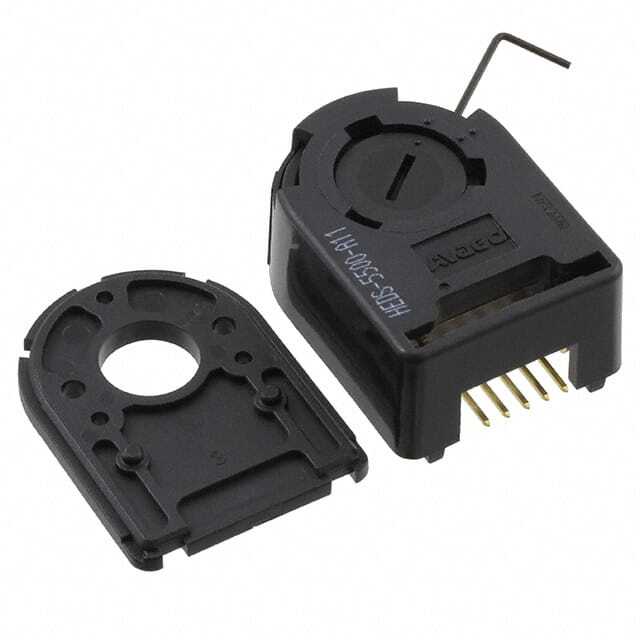

Description ROTARY ENCODER OPTICAL 500PPR / Rotary Encoder Optical 500 Quadrature (Incremental) Vertical
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders
Mfr Broadcom Limited
Series HEDS
Package Bulk
Product Status Active
Programmable Not Verified
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 500
Voltage - Supply 5V
Actuator Type 4mm Open Center
Detent No
Built in Switch No
Mounting Type Chassis Mount, Motors
Orientation Vertical
Termination Style Terminal Pins
Base Product Number HEDS-5500
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 920144-HEDS-5500#A11
Ultra Librarian 3D Model Ultra Librarian HEDS-5500#A11 CAD Model

Description

The Broadcom Limited HEDS-5500#A11 is an active optical encoder.

  • Package: bulk
  • Standard Package: 50 pieces
  • Output Type: quadrature
  • Actuator Type: 4mm open center
  • Programmable: not programmable
  • Built-in Switch: no
  • Pulses per Revolution: 500
  • Voltage Supply: 5V
  • Mounting: chassis or motors
  • REACH: not affected by REACH regulations
  • MSL Level: 1, which means it has no limitations in terms of moisture exposure
  • HTSUS Code: 8543.70.4500
