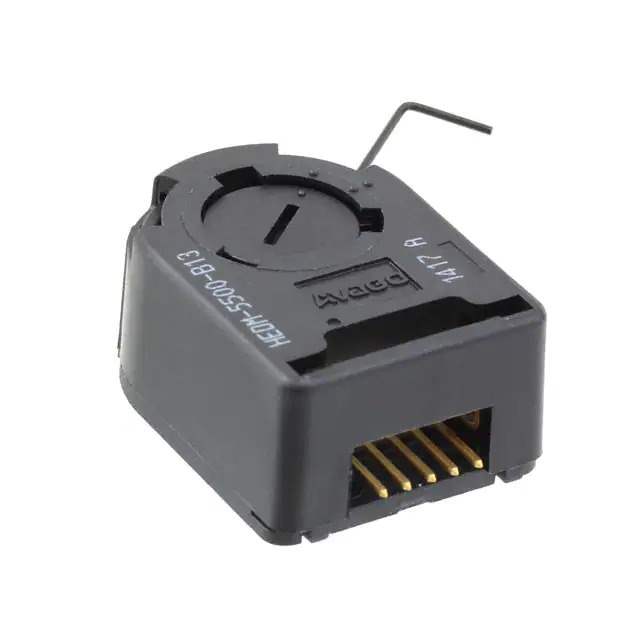

HEDM-5600#B13 Real Image
Same model may have multiple batches, images only for reference.

HEDM-5600#B13

Part No HEDM-5600#B13
Manufacturer Broadcom Limited
Catalog Encoders
Description ROTARY ENCODER OPTICAL 1000PPR / Rotary Encoder Optical 1000 Quadrature (Incremental) Vertical
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders
Mfr Broadcom Limited
Series HEDM
Package Bulk
Product Status Active
Programmable Not Verified
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 1000
Voltage - Supply 5V
Actuator Type 8mm Open Center
Detent No
Built in Switch No
Mounting Type Chassis Mount, Motors
Orientation Vertical
Termination Style Terminal Pins
Base Product Number HEDM-5600
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 920141-HEDM-5600#B13
Ultra Librarian 3D Model Ultra Librarian HEDM-5600#B13 CAD Model

Description

The HEDM-5600#B13 is an incremental encoder from Broadcom Limited's HEDM series.

  • Connection: terminal pins
  • Package: bulk
  • Standard Package: 50 pcs
  • Output Type: quadrature output type
  • Resolution: 1000 pulses per revolution
  • Actuator Type: 8mm open center
  • Type: optical encoder
  • Built-in Switch: no
  • Mounting: chassis mount or motor mounting
  • Supply Voltage: 5V
  • REACH: unaffected
  • Applications: industrial automation, robotics, and motion control applications
