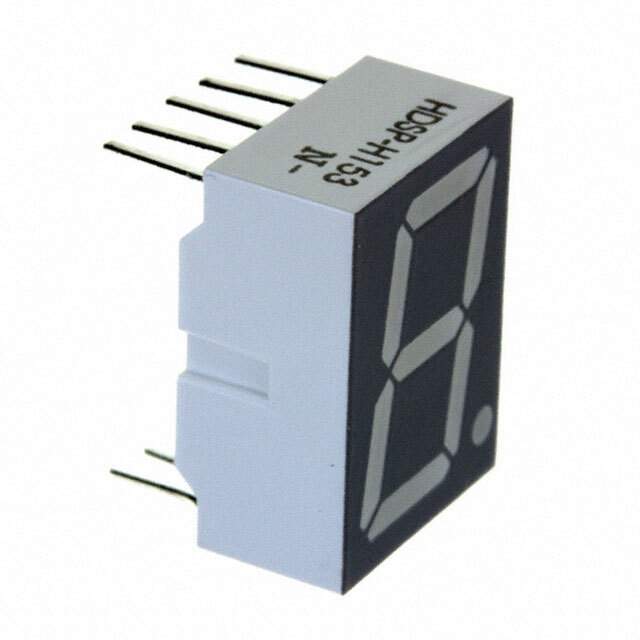

HDSP-H153 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Estimated Pruduction Lead Time 19 Weeks
Features Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.8V 20mA 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) 10-DIP (0.600", 15.24mm)
Manufacturer Broadcom Limited
Package Tube
Package 10-DIP (0.600", 15.24mm)
Family Name HDSP-H153
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.20.0040
Other Part Number 516-1211-5, 516-1211-5-NDR, HDSPH153
Quantity per package 320
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 873475-HDSP-H153
Ultra Librarian 3D Model Ultra Librarian HDSP-H153 CAD Model

Description

The HDSP-H153 is a display module manufactured by Broadcom Limited.

  • Win Source Part Number: 873475-HDSP-H153
  • Package Type: 10-DIP (0.600", 15.24mm)
  • Family Name: HDSP-H153
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8531.20.0040
