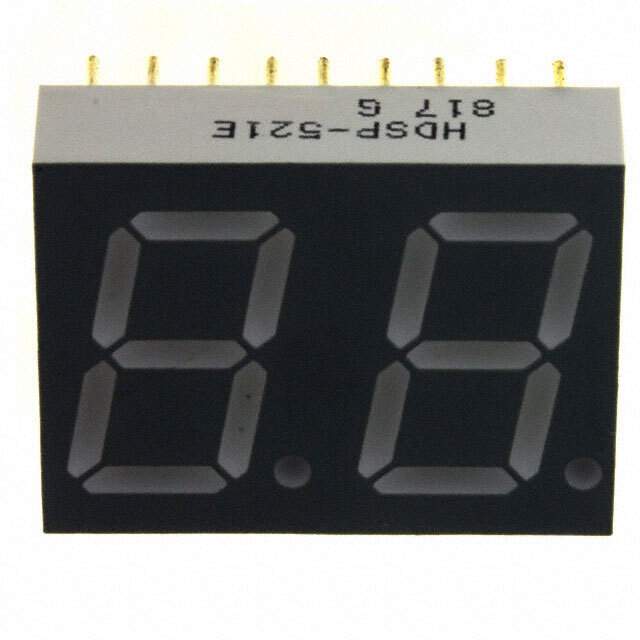

HDSP-521E Real Image
Same model may have multiple batches, images only for reference.

HDSP-521E

Part No HDSP-521E
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description 14.2 mm (0.56 inch) General Purpose Two Digit Seven Segment Displays | LED 7-SEG 14.2MM 2DIG CA HER RHD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tube
Number of Characters 2
Parts Dimension 0.732" H x 0.984" W x 0.315" D (18.60mm x 25.00mm x 8.00mm)
Digit/Alpha Size 0.56" (14.22mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) 2.05V
Current - Test 20mA
Millicandela Rating 4mcd
Wavelength - Peak 640nm
Power Dissipation (Maximum) 62.5mW
Manufacturer Package 18-DIP
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Win Source Part Number 1179735-HDSP-521E
Manufacturer Homepage www.home.agilent.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HDSP-521E CAD Model

Description

The Broadcom Limited 632712 is a 7-segment display from Broadcom Limited.

  • Package: 18-DIP
  • Peak Wavelength: 640nm
  • Millicandela Rating: 4mcd
  • Configuration: Common Anode
  • Digit/Alpha Size: 0.56" (14.22mm)
  • RoHS compliant
  • Maximum Power Dissipation: 62.5mW
  • Ideal for electronic systems that require a compact and efficient 7-segment display
