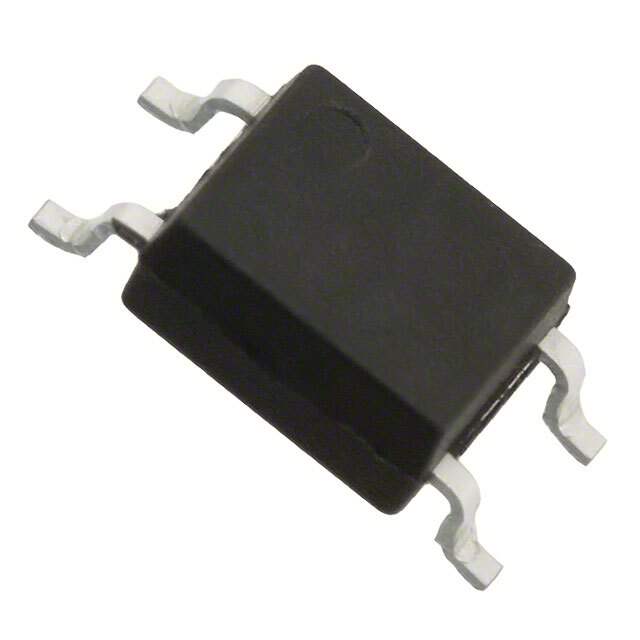

HCPL-181-060E Real Image
Same model may have multiple batches, images only for reference.

HCPL-181-060E

Part No HCPL-181-060E
Manufacturer Broadcom Limited
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV TRANS 4MINIFLAT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 50% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 067886-HCPL-181-060E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian HCPL-181-060E CAD Model

Description

The Broadcom Limited HCPL-181-060E is a high-speed optocoupler with a transistor output.

  • Forward Voltage: 1.2V
  • Temperature Range: -55°C to 100°C
  • Input Type: DC
  • Channels: 1
  • Vce Saturation: Up to 200mV
  • Isolation Voltage: 3750Vrms
  • DC Current Transfer Ratio: 50% (min) @ 5mA
  • Package: 4-mini-flat
  • Package Quantity: 3k
