Same model may have multiple batches, images only for reference.

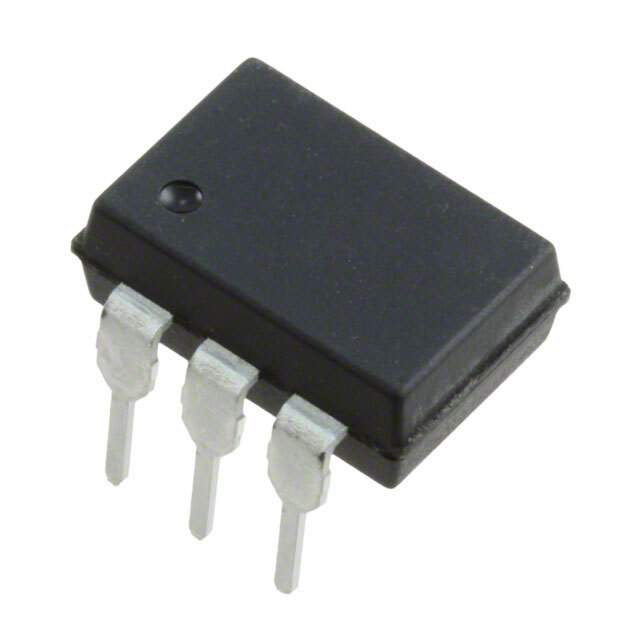

ASSR-3211-001E Real Image
Same model may have multiple batches, images only for reference.

ASSR-3211-001E

Part No ASSR-3211-001E
Manufacturer Broadcom Limited
Catalog Solid State Relays
Description RELAY SSR SPST SGL 0.2A 6DIP / Solid State Relay 25mA 1.65V DC-IN 0.2A 250V AC/DC-OUT 6-Pin PDIP Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Broadcom Limited
Series ASSR
Packaging Tube
Circuit SPST-NO (1 Form A)
Output Type AC, DC
On-State Resistance (Maximum) 10 Ohm
Load Current 200mA
Voltage - Input 1.3VDC
Voltage - Load 0 ~ 250 V
Mounting Style Through Hole
Termination Style PC Pin
Package 6-DIP (0.300", 7.62mm)
Manufacturer Package 6-DIP
Relay Type Relay
Win Source Part Number 768866-ASSR-3211-001E
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Family Name ASSR-3211
Introduction Date November 01, 2005
ECCN EAR99
Country of Origin Singapore, Thailand
Halogen Free Not Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian ASSR-3211-001E CAD Model

Description

The Broadcom Limited 768866-ASSR-3211-001E is an SPST-NO (1 Form A) relay with an AC and DC output type.

  • Voltage Input: 1.3VDC
  • Load Current: 200mA
  • Relay Type: Relay
  • Voltage Load: 0 ~ 250 V
  • Packaging: Tube
  • Termination Style: PC pin
  • Mounting Style: through hole
  • Package: 6-DIP (0.300", 7.62mm)
  • On-State Resistance: 10 Ohm
  • Alternative Parts: PLA150, LCA127, LCA125, and LCA120
  • Quantity Per Package: 50
  • Estimated EOL Date: 2024
