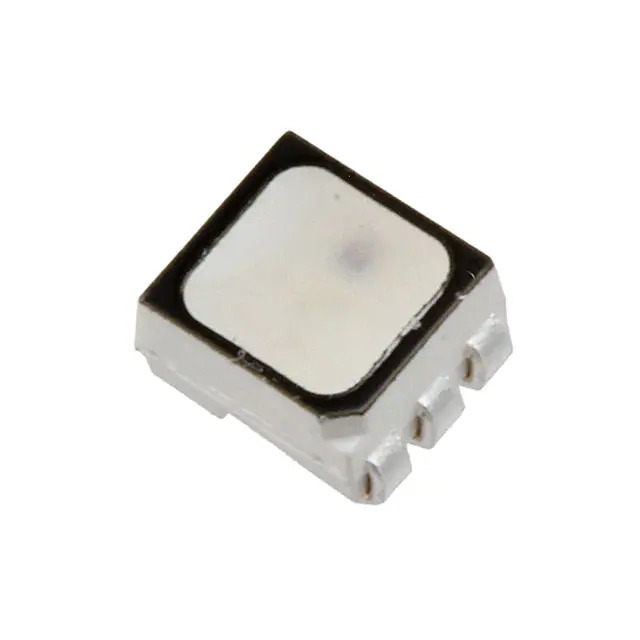

Same model may have multiple batches, images only for reference.
ASMT-YTB7-0AA02 Broadcom Limited
Same model may have multiple batches, images only for reference.

ASMT-YTB7-0AA02

Part No ASMT-YTB7-0AA02
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RGB DIFFUSED 6PLCC SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Broadcom Limited
Series -
Package Tape & Reel
Product Status Active
Color Red, Green, Blue (RGB)
Configuration Independent
Lens Color -
Lens Transparency Diffused
Millicandela Rating 650mcd Red, 1900mcd Green, 384mcd Blue
Lens Style Square with Flat Top
Lens Size 2.30mm
Voltage - Forward (Vf) (Typ) 2.1V Red, 3.1V Green, 3.1V Blue
Current - Test 20mA Red, 20mA Green, 20mA Blue
Viewing Angle 120°
Mounting Type Surface Mount
Wavelength - Dominant 623nm Red, 529nm Green, 469nm Blue
Wavelength - Peak 630nm Red, 522nm Green, 465nm Blue
Features -
Package / Case 6-SMD, J-Lead
Supplier Device Package 6-PLCC
Size / Dimension 3.00mm L x 2.80mm W
Height (Max) 2.00mm
Base Product Number ASMT-YTB7
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371959-ASMT-YTB7-0AA02
Ultra Librarian 3D Model Ultra Librarian ASMT-YTB7-0AA02 CAD Model

Description

The ASMT-YTB7-0AA02 is a high-quality LED indication component manufactured by Broadcom Limited.

  • Package: 6-SMD, J-Lead
  • Mounting Type: Surface Mount
  • Lens Style: Square with Flat Top
  • Size: 3.00mm L x 2.80mm W
  • Color: Multi-Color (Red, Green, Blue)
  • Dominant Wavelength: 623nm (Red), 529nm (Green), 469nm (Blue)
  • Millicandela Rating: 650mcd (Red), 1900mcd (Green), 384mcd (Blue)
  • Forward Voltage: 2.1V (Red), 3.1V (Green), 3.1V (Blue)
  • Current Rating: 20mA (Each Color)
  • Viewing Angle: 120 degrees
