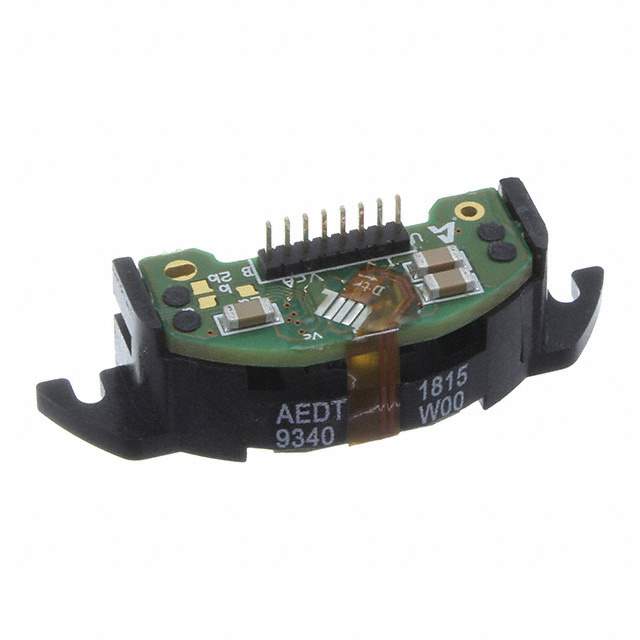

AEDT-9340-W00

Part No AEDT-9340-W00
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER 6CH COMM HI TEMP 2500CPR / Optical Encoder Rotary Incremental Digital Square Wave Screw Mount 2500CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series AEDT-9340
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 2500
Operating Supply Voltage 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Termination Style Terminal Pins
Win Source Part Number 768300-AEDT-9340-W00
Popularity Medium
Supply and Demand Status Limited
Quantity per package 120
Family Name AEDT-9340
Introduction Date April 04, 2008
ECCN EAR99
Country of Origin Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian AEDT-9340-W00 CAD Model

Description

The AEDT-9340-W00 is an encoder manufactured by Broadcom Limited.

  • Series: AEDT-9340
  • Category: Sensors, Transducers
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Rotational Life: Minimum Cycles
  • Compliance: Not Halogen-free
  • Estimated EOL Date: 2025
