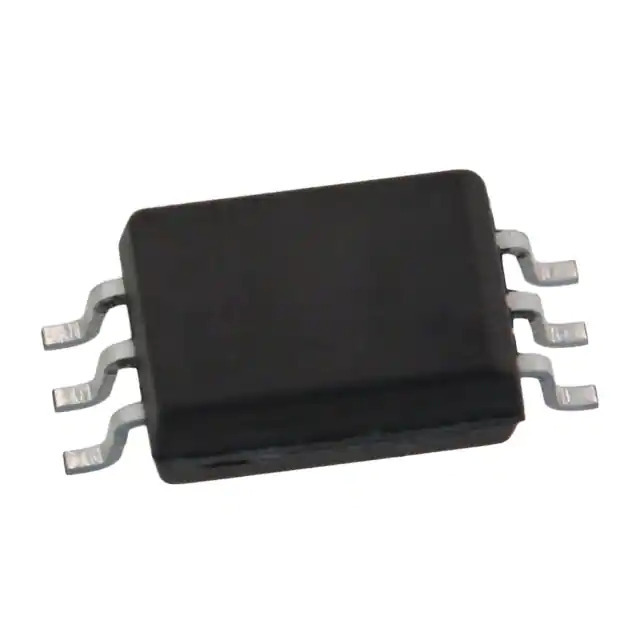

Same model may have multiple batches, images only for reference.

ACPL-P349-060E

Name: ACPL-P349-060E
Brand: Broadcom Limited
SKU: 1371592
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ACPL-P349-060E
Manufacturer	Broadcom Limited
Catalog	Isolators - Gate Drivers
Description	OPTOISO 3.75KV 1CH GATE DRVR 6SO
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators - Isolators - Gate Drivers
Mfr	Broadcom Limited
Series	-
Package	Tube
Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	50kV/µs
Propagation Delay tpLH / tpHL (Max)	110ns, 110ns
Pulse Width Distortion (Max)	40ns
Rise / Fall Time (Typ)	8ns, 8ns
Current - Output High, Low	2A, 2A
Current - Peak Output	2.5A
Voltage - Forward (Vf) (Typ)	1.55V
Current - DC Forward (If) (Max)	25 mA
Voltage - Output Supply	15V ~ 30V
Temperature Range - Operating	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package	6-SO
Approval Agency	CSA, IEC/EN/DIN, UR
Base Product Number	ACPL-P349
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.49.8000
Win Source Part Number	1371592-ACPL-P349-060E
Ultra Librarian 3D Model	Ultra Librarian ACPL-P349-060E CAD Model

Description

The Broadcom Limited ACPL-P349-060E is an optical coupling isolator designed for gate driver applications.

Voltage Isolation: 3750Vrms
Package: 6-SOIC
Package Width: 0.268" (6.80mm)
Forward Voltage: 1.55V
Current Rating: 25mA
Common Mode Transient Immunity: 50kV/μs
Rise and Fall Time: 8ns
Approvals: CSA, IEC/EN/DIN, and UR
