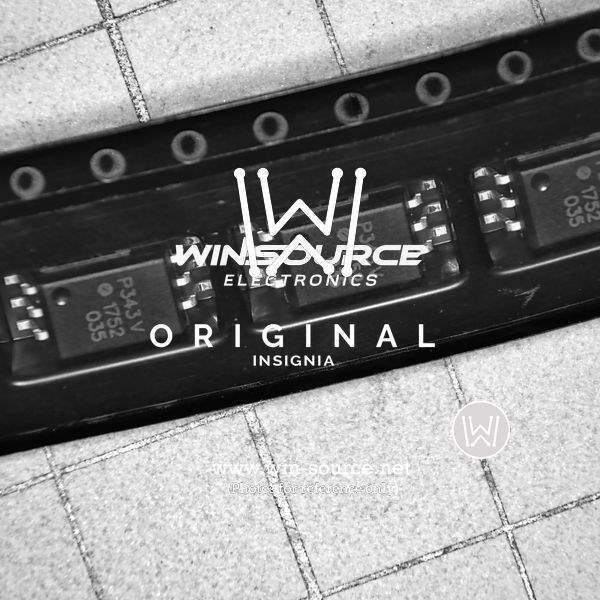

ACPL-P343-560E Real Image ACPL-P343-560E Real Image
Same model may have multiple batches, images only for reference.
ACPL-P343-560E Real Image ACPL-P343-560E Real Image
ACPL-P343-560E Real Image ACPL-P343-560E Real Image
Same model may have multiple batches, images only for reference.

ACPL-P343-560E

Part No ACPL-P343-560E
Manufacturer Broadcom Limited
Catalog Isolators - Gate Drivers
Description OPTOISO 3.75KV 1CH GATE DRVR 6SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Estimated Pruduction Lead Time 21 Weeks
Features 4A Gate Driver Optical Coupling 3750Vrms 1 Channel 6-SO Stretched
Manufacturer Broadcom Limited
Package Reel - TR
Operating Temperature Range -40°C ~ 105°C
Mounting Surface Mount
Package 6-SOIC (0.268", 6.80mm Width)
Case / Package 6-SO Stretched
Family Name ACPL-P343
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.8000
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 859307-ACPL-P343-560E
Ultra Librarian 3D Model Ultra Librarian ACPL-P343-560E CAD Model

Description

The Broadcom Limited 859307-ACPL-P343-560E is a 4A gate driver optical coupling isolator.

  • Isolation Voltage: 3750Vrms
  • Operating Temperature: -40°C to 105°C
  • Channels: 1
  • Package: 6-SOIC (0.268", 6.80mm width)
  • Mounting: Surface Mount
  • Family: ACPL-P343
  • Category: Isolators
  • Supply and Demand: Limited
  • Package Quantity: 1000
  • MSL Level: 1 (unlimited)
  • Production Lead Time: 21 weeks
  • REACH Status: Unaffected
  • HTSUS: 8541.40.8000
