ACNV2601-500E

Part No ACNV2601-500E
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description OPTOISO 7.5KV OPEN COLL 10DIP GW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 7500Vrms
Common Mode Transient Immunity (Min) 20kV/μs
Input Type DC
Output Type Open Collector, Schottky Clamped
Channel Output Current 50mA
Data Rate 10MBd
Propagation Delay tpLH / tpHL (Max) 80ns, 80ns
Rise and Fall Time 25ns, 10ns
Forward Voltage 1.64V
Continuous forward current- Max 20mA
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 105°C
Mounting SMD (SMT)

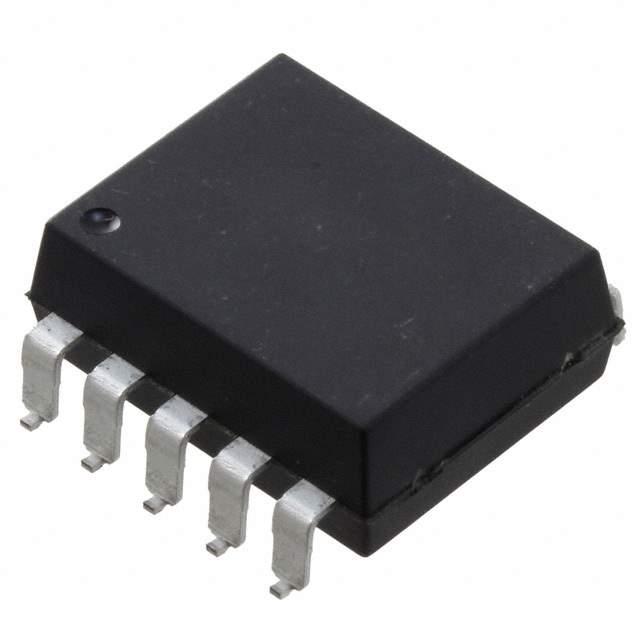

Case / Package 10-DIP Gull Wing
Win Source Part Number 007864-ACNV2601-500E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian ACNV2601-500E CAD Model

Description

Overview

The ACNV2601-500E is a high-performance optoelectronic device designed for applications requiring electrical signal isolation. Its dual-channel design provides efficient and reliable performance in critical electronic systems.

Features and Benefits

  • Up to 5000 Vrms insulation voltage offering high safety standards.
  • High-speed communication capability suitable for demanding systems.
  • Compact and durable design enhancing space efficiency.

Applications

  • Industrial automation equipment
  • Medical instrumentation
  • Power supply isolation
  • Microcontroller interfacing
