Same model may have multiple batches, images only for reference.

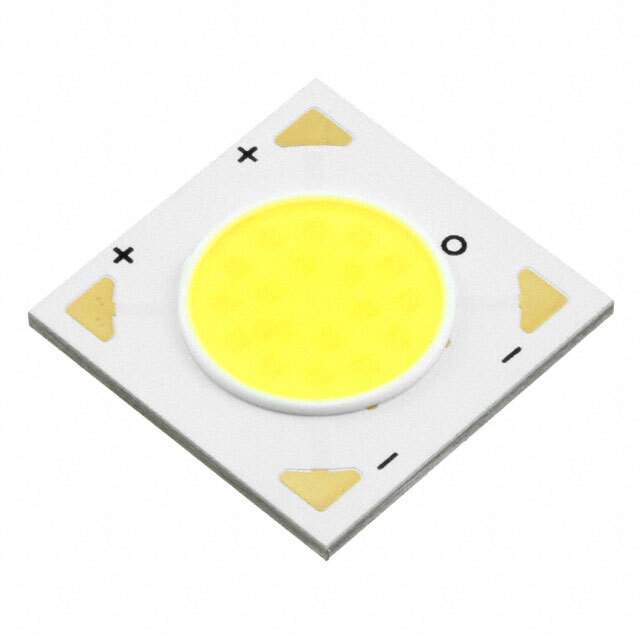

BXRE-30E1000-B-23 Real Image
Same model may have multiple batches, images only for reference.

BXRE-30E1000-B-23

Part No BXRE-30E1000-B-23
Manufacturer Bridgelux
Catalog LED Lighting - COBs, Engines, Modules
Description LED ARRAY 1000LM WARM WHITE COB / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Square
Datasheet
BXRE-30E1000-B-23 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Bridgelux
Series V10 Array
Package Tray
Product Status Obsolete
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 1213lm (Typ)
Current - Test 350mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 26.5V
Lumens/Watt @ Current - Test 131 lm/W
Current - Max 700mA
CRI (Color Rendering Index) 80
Viewing Angle 120°
Dimension 15.80mm L x 15.80mm W
Height 1.70mm
Light Emitting Surface (LES) 9.90mm Dia
Lens Type Flat
Base Product Number BXRE-30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 976-1295
Standard Package 840
Win Source Part Number 1154734-BXRE-30E1000-B-23
Ultra Librarian 3D Model Ultra Librarian BXRE-30E1000-B-23 CAD Model

Description

The Bridgelux V10 Array COB LED is a high-performance, square-shaped chip-on-board LED that is ideal for LED lighting applications.

  • Shape: Square
  • Color: White or Warm
  • Viewing Angle: 120-degree
  • Current-Maximum: 700mA
  • Voltage-Forward: 26.5V
  • CCT (K): 3000K
  • CRI (Color Rendering Index): 80
  • Lumens/Watt @ Current-Test: 131 lm/W
  • Light Emitting Surface (LES): 9.90mm
  • Length: 15.80mm
  • Width: 15.80mm
  • Height: 1.70mm
  • Package: Tray
  • Standard Package: 840
  • ECCN: EAR99
  • REACH: Not affected by REACH
