Same model may have multiple batches, images only for reference.

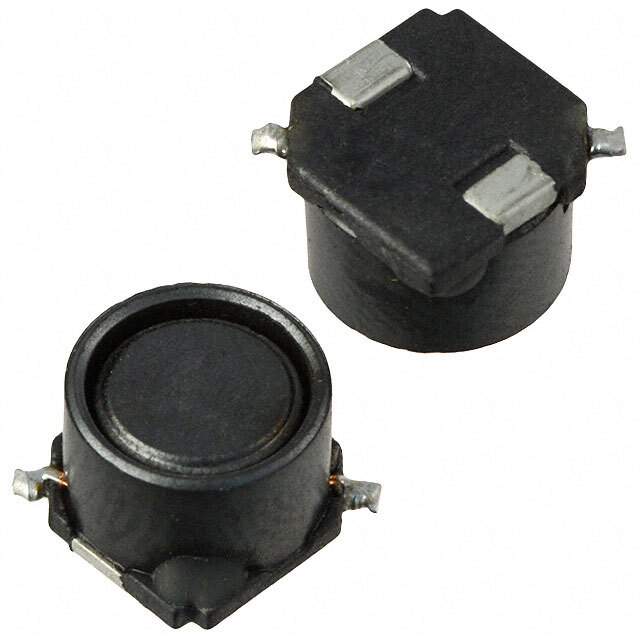

SRR7045-102M Real Image
Same model may have multiple batches, images only for reference.

SRR7045-102M

Part No SRR7045-102M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 1MH 250MA 2.4 OHM SMD / 1 mH Shielded Drum Core, Wirewound Inductor 250 mA 2.4Ohm Max Nonstandard
Datasheet
SRR7045-102M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR7045
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1 mH
Tolerance ±20%
Current Rating (Amps) 250 mA
Current - Saturation (Isat) 150mA
Shielding Shielded
DC Resistance (DCR) 2.4Ohm Max
Q @ Freq 90 @ 252kHz
Frequency - Self Resonant 3MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SRR7045
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRR7045-102M-ND,-SRR7045-102MTR,-SRR7045-102M-ND,SRR7045102M,SRR7045-102MDKR,-SRR7045-102M,SRR7045-102MCT,SRR7045-102MTR,-SRR7045-102MCT
Standard Package 1,000
Win Source Part Number 1134275-SRR7045-102M
Ultra Librarian 3D Model Ultra Librarian SRR7045-102M CAD Model

Description

The SRR7045-102M electronic component with part number 1134275-SRR7045-102M is a high-quality drum core, wirewound inductor with a shielding feature.

  • Inductance: 1 mH
  • Tolerance: ±20%
  • DC Resistance (DCR): 2.4 Ohm Max.
  • Mounting Type: SMD (SMT)
  • Temperature Range: -40°C to 125°C
  • Height: 0.189" (4.80mm)
  • Dimension: 0.276" L x 0.276" W (7.00mm x 7.00mm)
