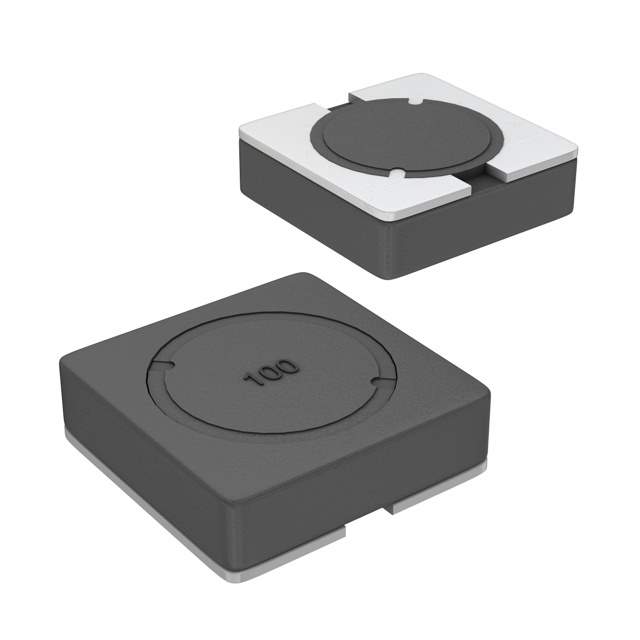

Same model may have multiple batches, images only for reference.

SRR5018-330Y

Name: SRR5018-330Y
Brand: Bourns Inc.
SKU: 965223
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SRR5018-330Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 33UH 650MA 350MOHM SMD / 33 µH Shielded Drum Core, Wirewound Inductor 650 mA 350mOhm Max Nonstandard
Datasheet	SRR5018-330Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR5018
Package	Tape & Reel (TR),Cut Tape (CT)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	33 µH
Tolerance	±30%
Current Rating (Amps)	650 mA
Current - Saturation (Isat)	700mA
Shielding	Shielded
DC Resistance (DCR)	350mOhm Max
Q @ Freq	10.9 @ 2.52MHz
Frequency - Self Resonant	20MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max)	0.079" (2.00mm)
Base Product Number	SRR5018
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	-SRR5018-330Y,SRR5018-330YCT,-SRR5018-330Y-ND,SRR5018330Y,-SRR5018-330YCT,SRR5018-330YTR,-SRR5018-330YTR,SRR5018-330Y-ND
Standard Package	500
Win Source Part Number	965223-SRR5018-330Y
Ultra Librarian 3D Model	Ultra Librarian SRR5018-330Y CAD Model

Alternative Products

Description

The SRR5018-330Y is a drum core, wirewound inductor from Bourns Inc. that is shielded and has an inductance of 33 µH.

Height: 0.079" (2.00mm)
Mounting: SMD (SMT)
Tolerance: ±30%
Q @ Freq: 10.9 @ 2.52MHz
Frequency Self-Resonant: 20MHz
DC Resistance: 350mOhm Max
Operating Temperature: -40°C ~ 125°C
Dimension: 0.228" L x 0.228" W (5.80mm x 5.80mm)
Alternative Part: SRR4028-330Y, SRR4018-330Y, and SRU6013-330Y
Current Rating: 650 mA
Inductance Frequency-Test: 100 kHz
