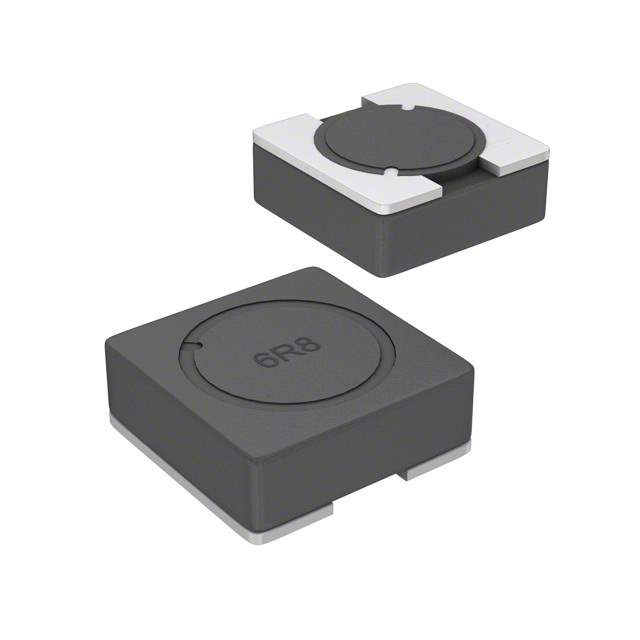

SRR4018-220Y Real Image
Same model may have multiple batches, images only for reference.

SRR4018-220Y

Part No SRR4018-220Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 880MA 300MOHM SMD / 22 µH Shielded Drum Core, Wirewound Inductor 880 mA 300mOhm Max 1919 (4848 Metric)
Datasheet
SRR4018-220Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR4018
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±30%
Current Rating (Amps) 880 mA
Current - Saturation (Isat) 650mA
Shielding Shielded
DC Resistance (DCR) 300mOhm Max
Q @ Freq 7 @ 2.52MHz
Frequency - Self Resonant 29MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 1919 (4848 Metric)
Dimension 0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max) 0.079" (2.00mm)
Base Product Number SRR4018
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRR4018-220YTR,-SRR4018-220Y-ND,SRR4018-220Y-ND,-SRR4018-220Y,SRR4018220Y,-SRR4018-220YTR,-SRR4018-220YCT,SRR4018-220YCT
Standard Package 800
Win Source Part Number 1095970-SRR4018-220Y
Ultra Librarian 3D Model Ultra Librarian SRR4018-220Y CAD Model

Description

The SRR4018-220Y is a shielded fixed inductor from Bourns Inc.

  • Series: SRR4018
  • Type: Drum core, wirewound
  • Package: Tape and reel
  • Standard Package: 800
  • Inductance: 22 µH
  • Maximum Current Rating: 880 mA
  • Tolerance: ±30%
  • Material-Core: Ferrite
  • Q @ Freq: 7 @ 2.52MHz
  • Frequency-Self Resonant: 29MHz
  • Package/Case: 1919 (4848 Metric)
  • Dimension: 0.189" L x 0.189" W (4.80mm x 4.80mm)
  • DC Resistance (DCR): 300mOhm Max
  • Temperature Range: -40°C ~ 125°C
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS: 8504.50.4000
