Same model may have multiple batches, images only for reference.

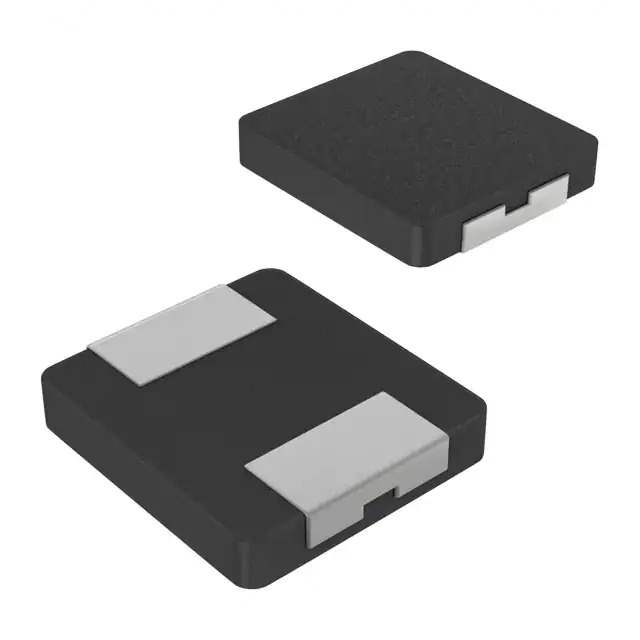

SRP4012TA-1R0M Real Image
Same model may have multiple batches, images only for reference.

SRP4012TA-1R0M

Part No SRP4012TA-1R0M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 1UH 4A 47 MOHM SMD
Datasheet
SRP4012TA-1R0M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Bourns Inc.
Series SRP4012TA
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 4 A
Current - Saturation (Isat) 6A
Shielding Shielded
DC Resistance (DCR) 47mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 80MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 2-SMD
Supplier Device Package 2-SMD
Size / Dimension 0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number SRP4012TA
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
California Prop 65 Warning Information
Win Source Part Number 851502-SRP4012TA-1R0M
Ultra Librarian 3D Model Ultra Librarian SRP4012TA-1R0M CAD Model

Description

The SRP4012TA-1R0M is a drum core, wirewound inductor from Bourns Inc.

  • Series: SRP4012TA
  • Type: Fixed Inductors
  • Core Material: Drum Core, Wirewound
  • Shielding: Shielded
  • Package: Tape & Reel
  • Size / Dimension: 0.175" L x 0.160" W (4.45mm x 4.06mm)
  • Height - Seated (Max): 0.047" (1.20mm)
  • Inductance: 1 μH
  • Tolerance: ±20%
  • DC Resistance (DCR): 47mΩ Max
  • Current Rating: 4A
  • Operating Temperature: -40°C to 150°C
  • Application: Automotive Electronics (AEC-Q200) and General Purpose
  • Self-Resonant Frequency: 80MHz
  • Saturation Current: 6A
